Product Description

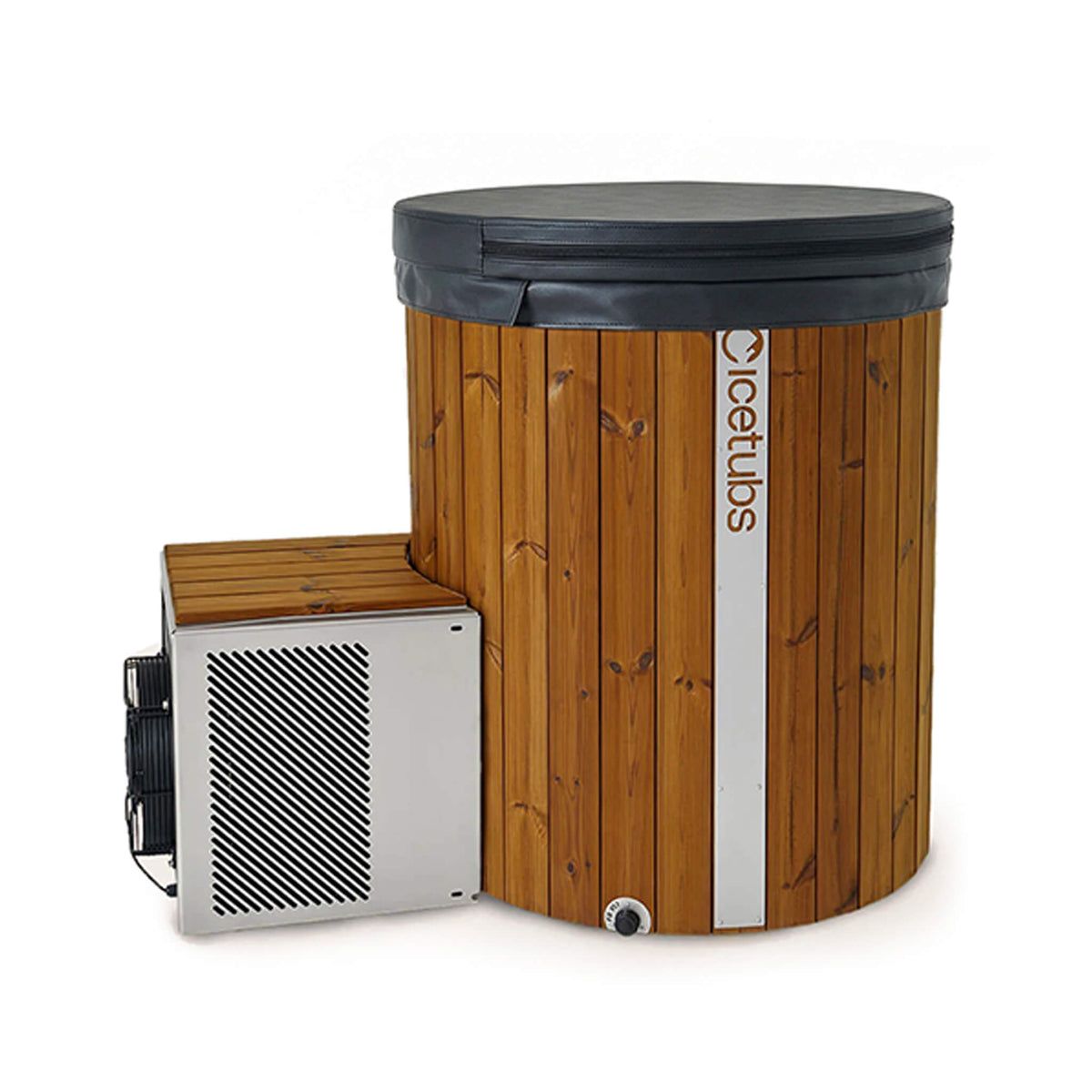

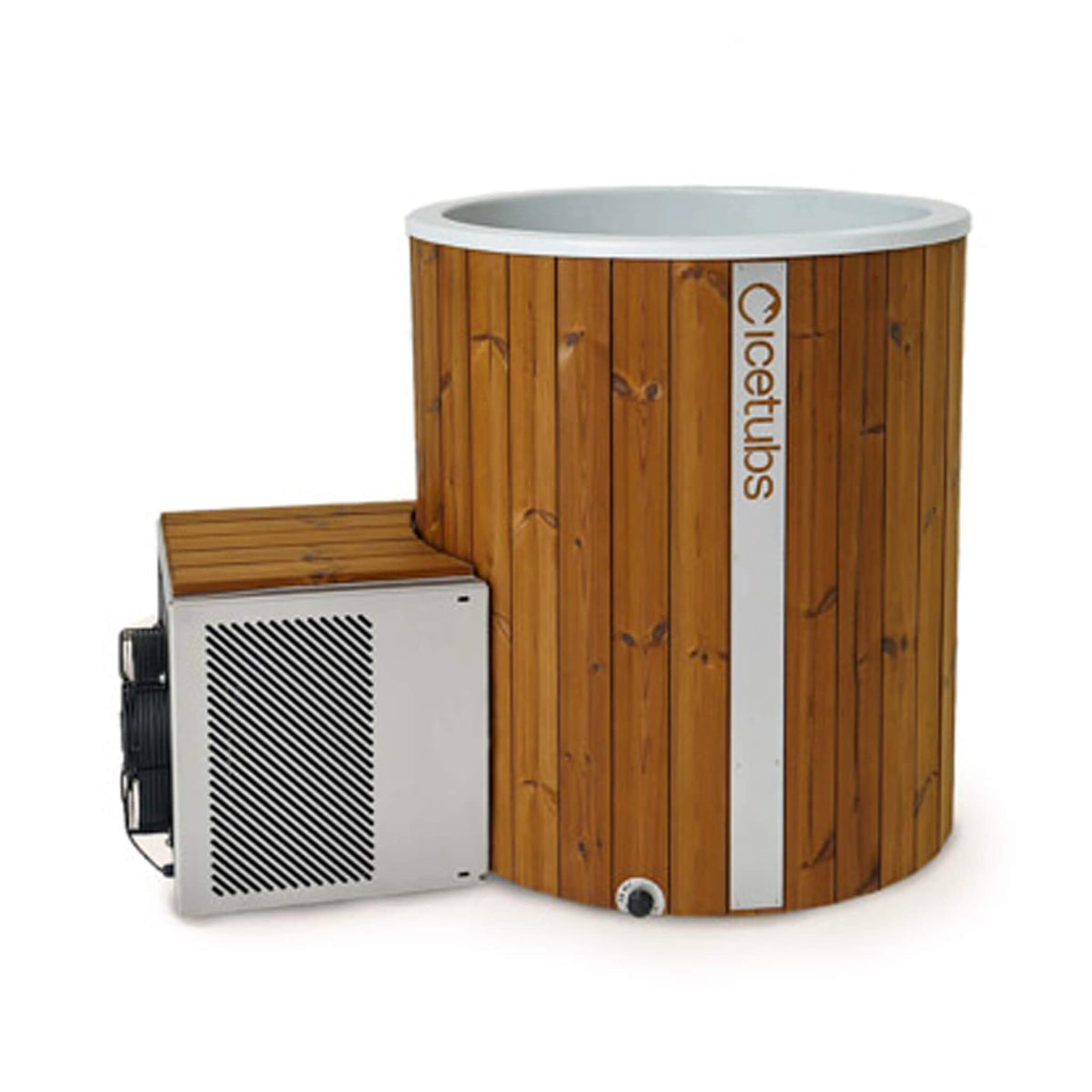

The Icetubs IceBarrel XL, model ICEBARREL XL, is a one-person immersion tub designed for indoor or outdoor installation. Its upright configuration combines a Thermowood exterior with a fiberglass tub and a built-in seat.
The included 1 HP Icetubs engine provides adjustable water temperatures from 37.4°F to 100.4°F. Temperature settings can be managed through the Icetubs mobile app or directly from the engine control panel.

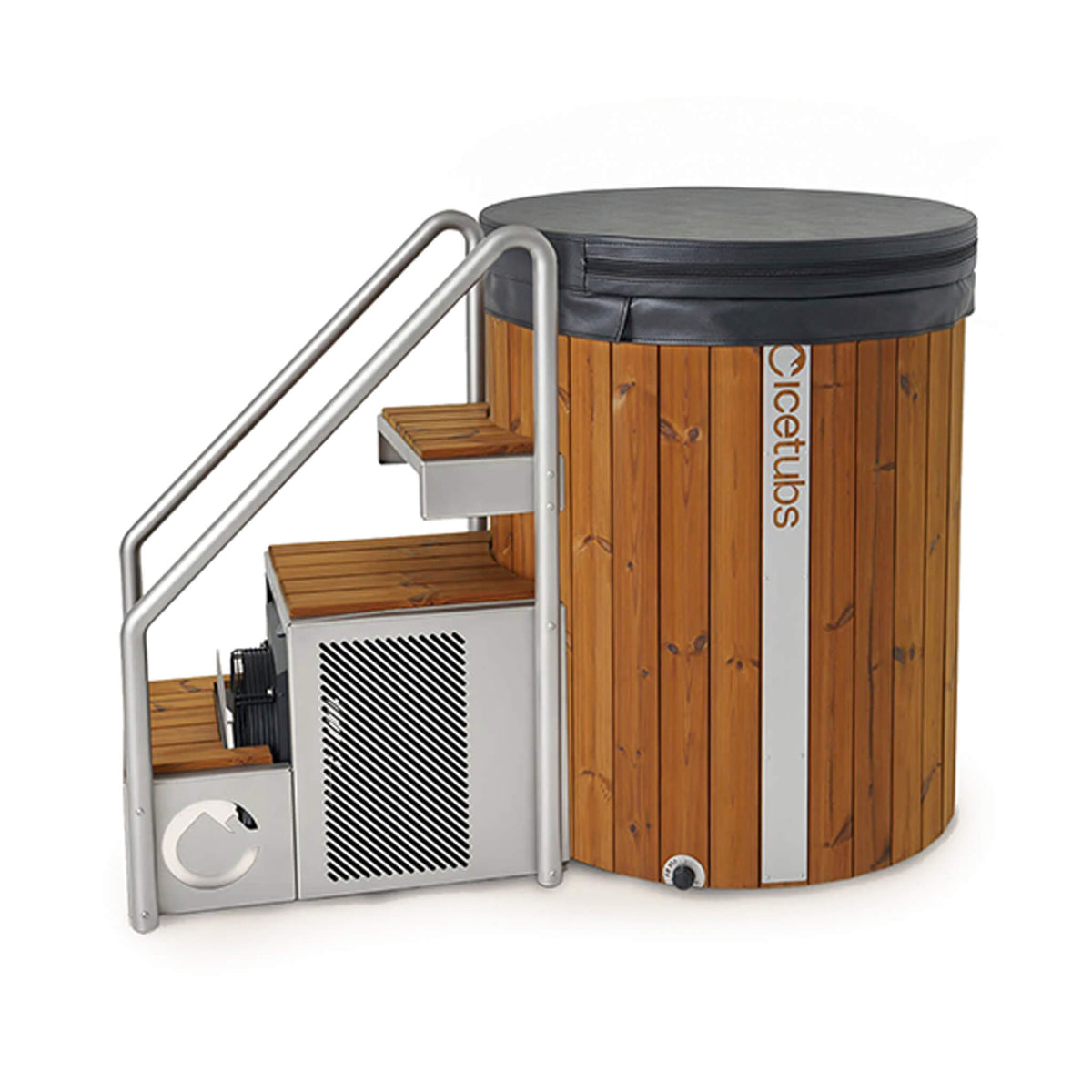

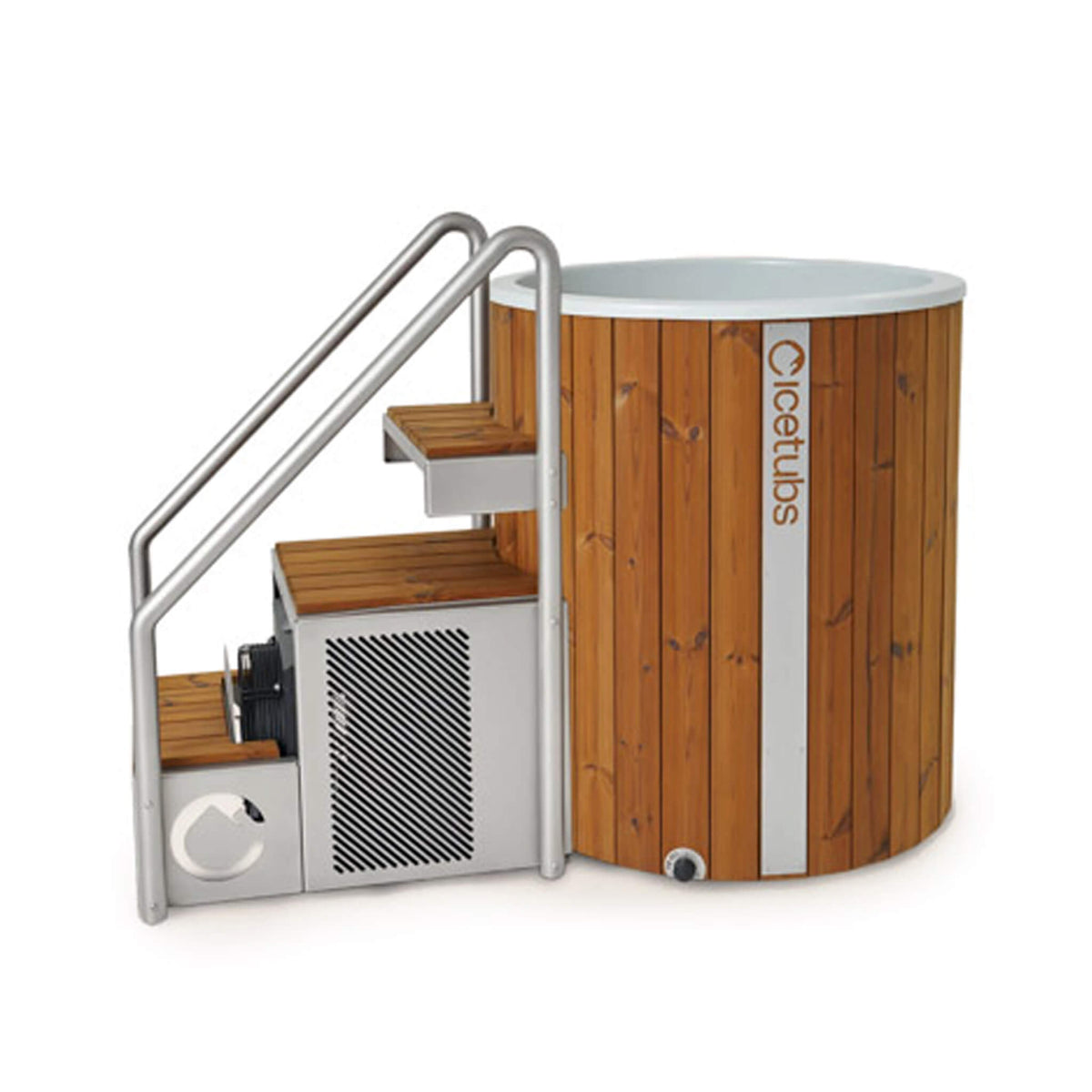

A three-stage filtration system, replaceable filters, and a built-in ozonator help maintain the water between uses. The system operates without a dedicated plumbing connection and includes a fitted thermal cover. Optional Thermowood stairs with stainless steel handrails are available separately.
Features
- One-person upright immersion tub
- Thermowood exterior
- Fiberglass tub with built-in seat
- Suitable for indoor or outdoor installation
- 1 HP cooling and heating engine
- Adjustable temperature from 37.4°F to 100.4°F
- Mobile-app and engine-panel controls
- Three-stage water-filtration system
- Built-in ozonator
- Replaceable filters
- Filtration captures particles as small as 5 microns
- 14.5-gallon-per-minute flow rate
- No dedicated plumbing connection required
- Fitted thermal cover included
- Optional matching stairs and handrails

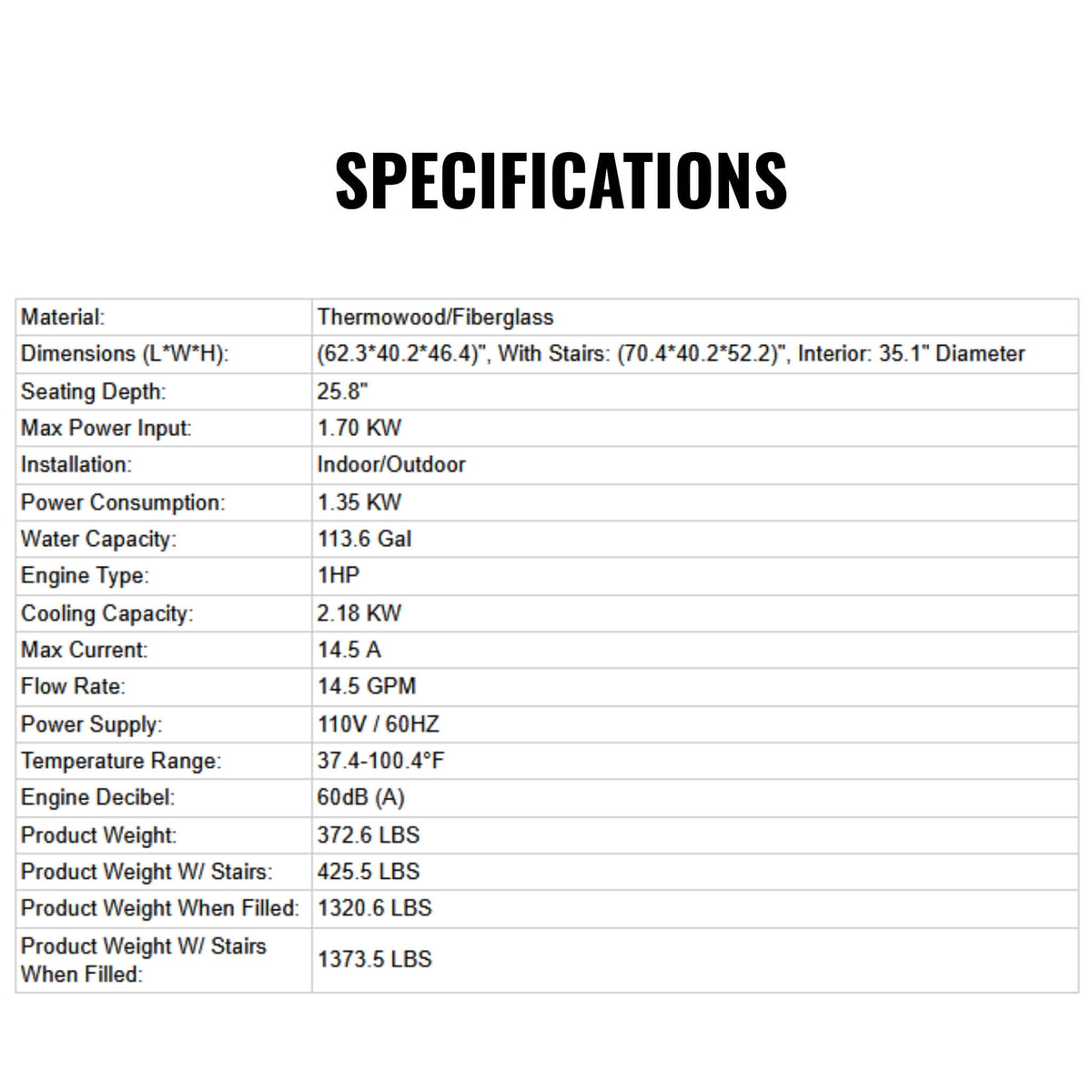

Specifications
- Brand: Icetubs
- Model: ICEBARREL XL
- Supplier product number: SAK35418
- Manufacturer SKU: 130326
- Product type: Cold and warm immersion tub
- Capacity: One person
- Exterior material: Thermowood
- Tub material: Fiberglass
- Overall dimensions: 62.3 × 40.2 × 46.4 inches
- Metric dimensions: 158.2 × 102.1 × 117.9 cm
- Interior diameter: 35.1 inches / 89.2 cm
- Seating depth: 25.8 inches / 65.5 cm
- Water capacity: 113.6 gallons / 430 liters
- Engine power: 1 HP
- Maximum power input: 1.7 kW
- Power consumption: 1.35 kW
- Maximum current: 14.5A
- Power supply: 110V / 60Hz
- Cooling capacity: 2.18 kW
- Temperature range: 37.4°F–100.4°F / 3°C–38°C
- Flow rate: 14.5 gpm / 54.9 Lpm
- Engine sound level: 60 dB(A)
- Product weight: 372.6 lbs / 169 kg
- Filled weight: 1,320.6 lbs / 599 kg
- Shipping weight: 421.1 lbs / 191 kg
- Dimensions with optional stairs: 70.4 × 40.2 × 52.2 inches
- Weight with optional stairs: 425.5 lbs / 193 kg
- Filled weight with optional stairs: 1,373.5 lbs / 623 kg
- Shipping weight with optional stairs: 474 lbs / 215 kg
- Included components: IceBarrel XL, cooling engine, two engine connectors, four connector seals, cooling-engine protector, Gardena hose attachment set, thermal cover, four cover clips, four cover-clip screws, three filters, and installation and operation manual
- Optional components: Thermowood upper and lower steps, stainless steel handrails, and installation hardware
Assembly
Place the IceBarrel XL on a flat, stable surface capable of supporting its filled weight. Connect the cooling engine, hoses, seals, filter, and thermal-cover clips according to the included installation and operation manual.
A dedicated plumbing connection is not required. The system requires a compatible 110V, 60Hz electrical connection. Confirm electrical and site requirements before filling or operating the tub.
Warranty
Includes a two-year limited manufacturer warranty for consumer use and a six-month limited manufacturer warranty for light-commercial use. Coverage is subject to the manufacturer’s warranty terms and exclusions.
