Product Description

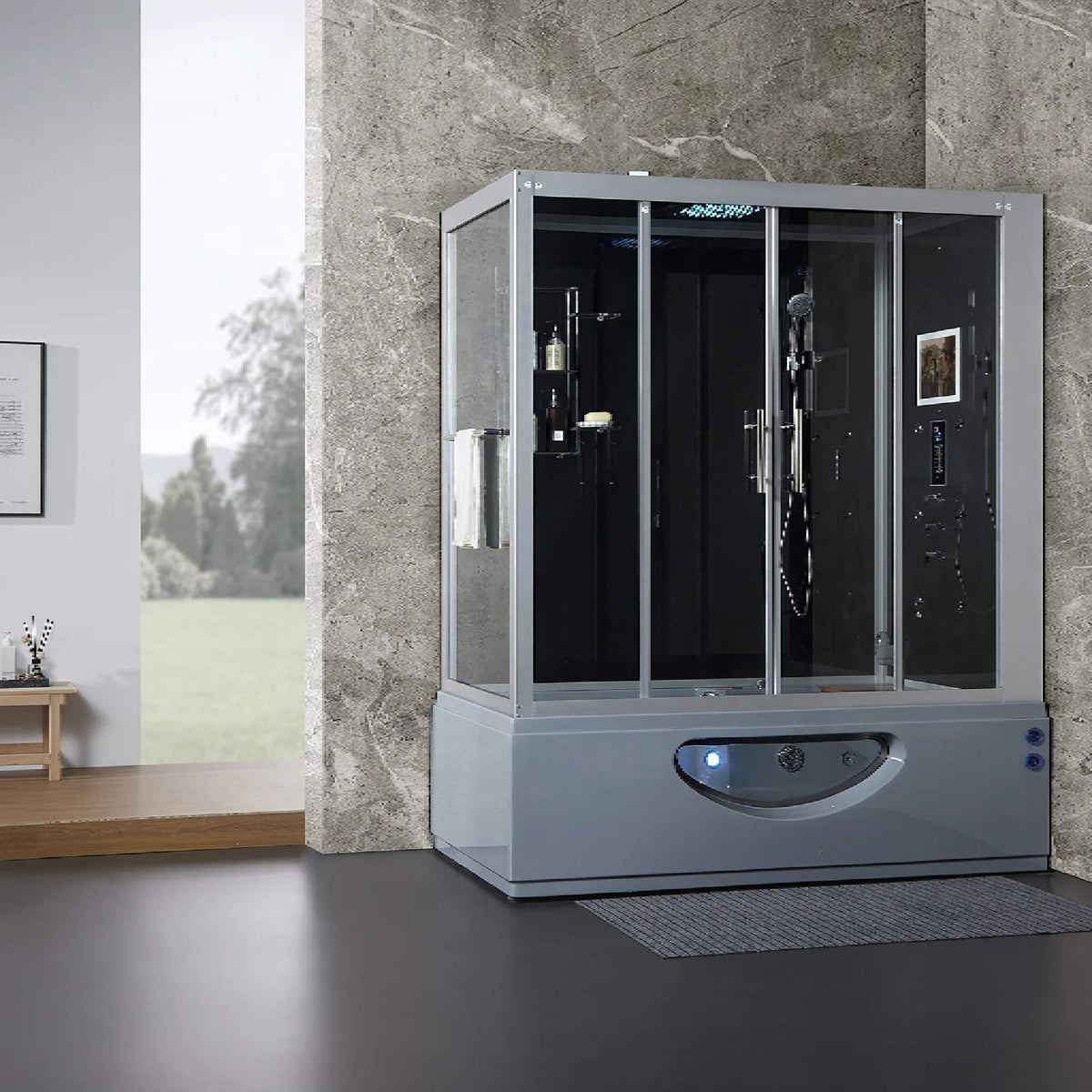

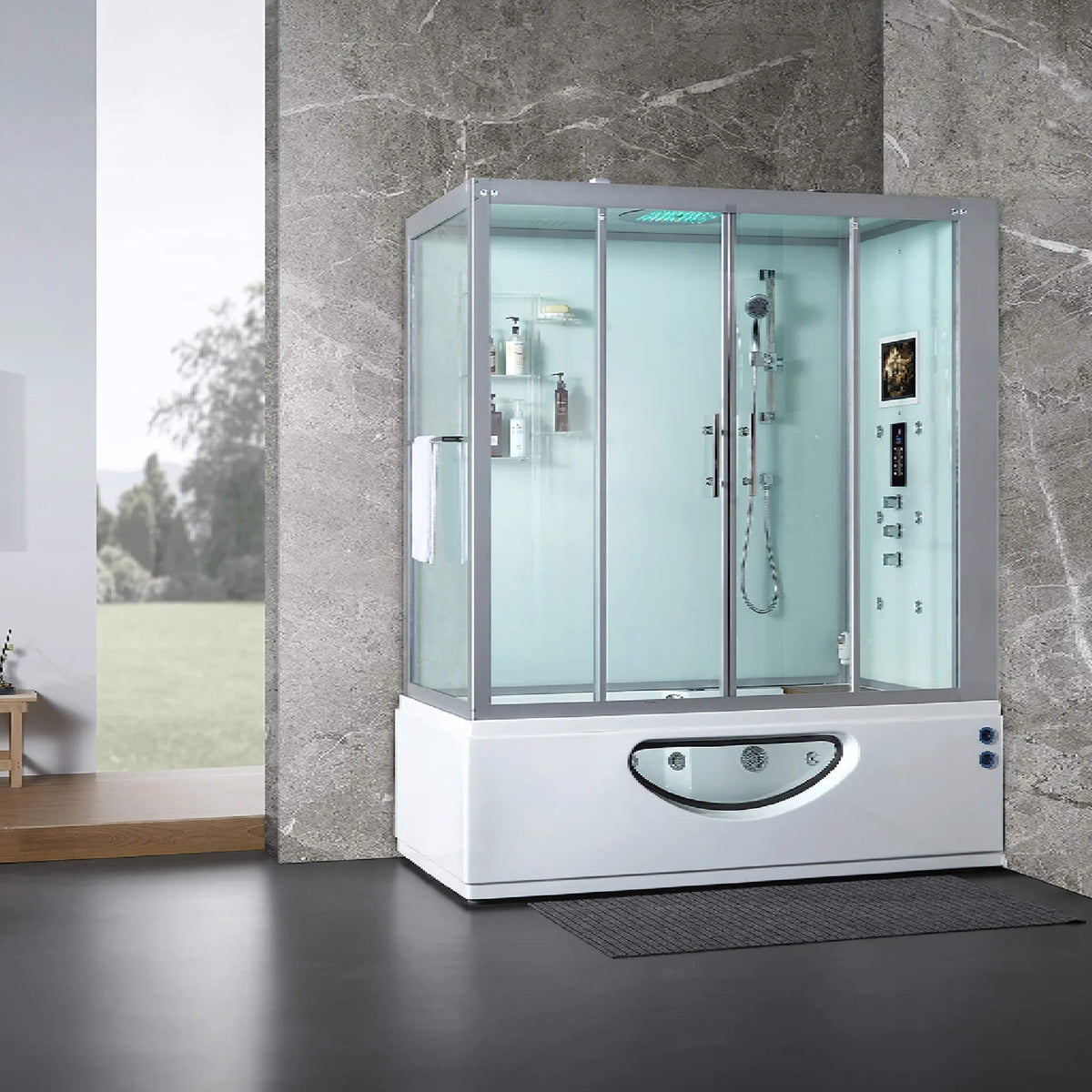

The Maya Bath Platinum Catania, model SAK42985, combines an enclosed steam shower with a whirlpool bathtub in a corner-oriented design. The unit features 27 whirlpool jets, six focused body jets, a built-in steam generator, an overhead rainfall shower and an adjustable handheld shower.
A built-in 12-inch Android smart display provides access to compatible entertainment functions. Bluetooth connectivity, FM radio, MP3 playback, integrated speakers and a telephone handset are also included. Lighting, ventilation, adjustable water controls and an aromatherapy port provide additional operating options.
The enclosure combines a reinforced acrylic body with stainless-steel framing and fixtures plus tempered-glass panels. White, gray and black finishes are available.
Features
- Enclosed steam shower and whirlpool bathtub
- Built-in steam generator

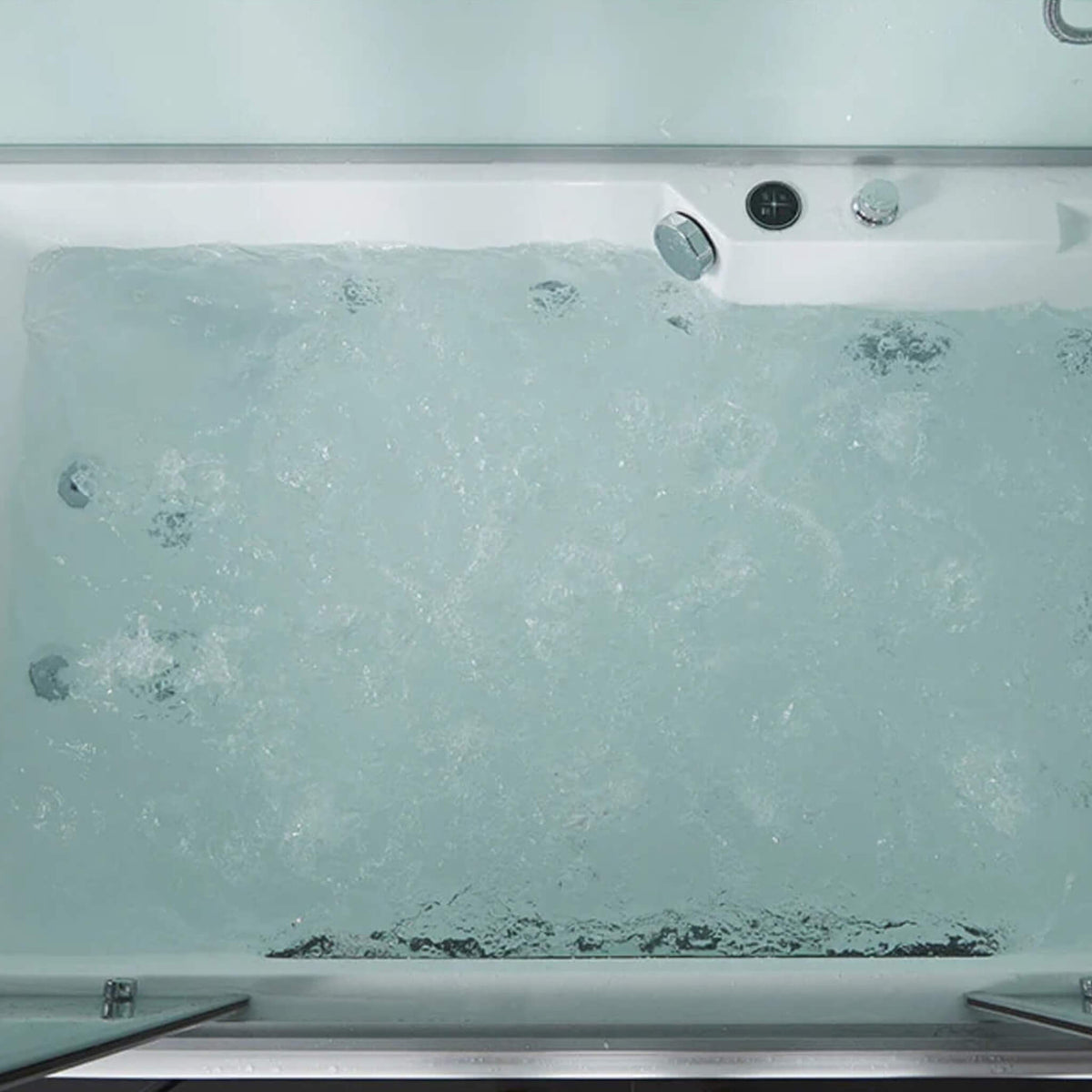

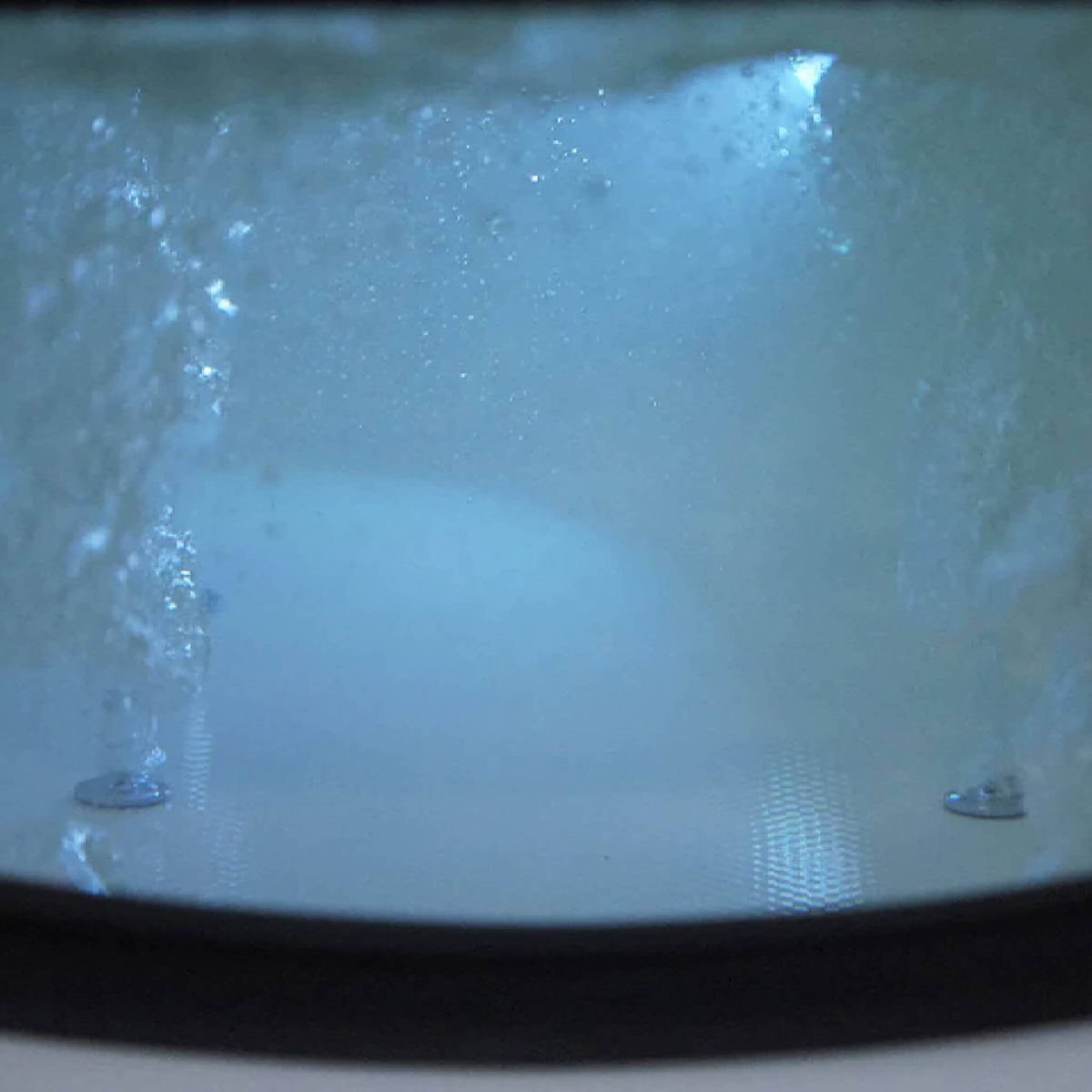

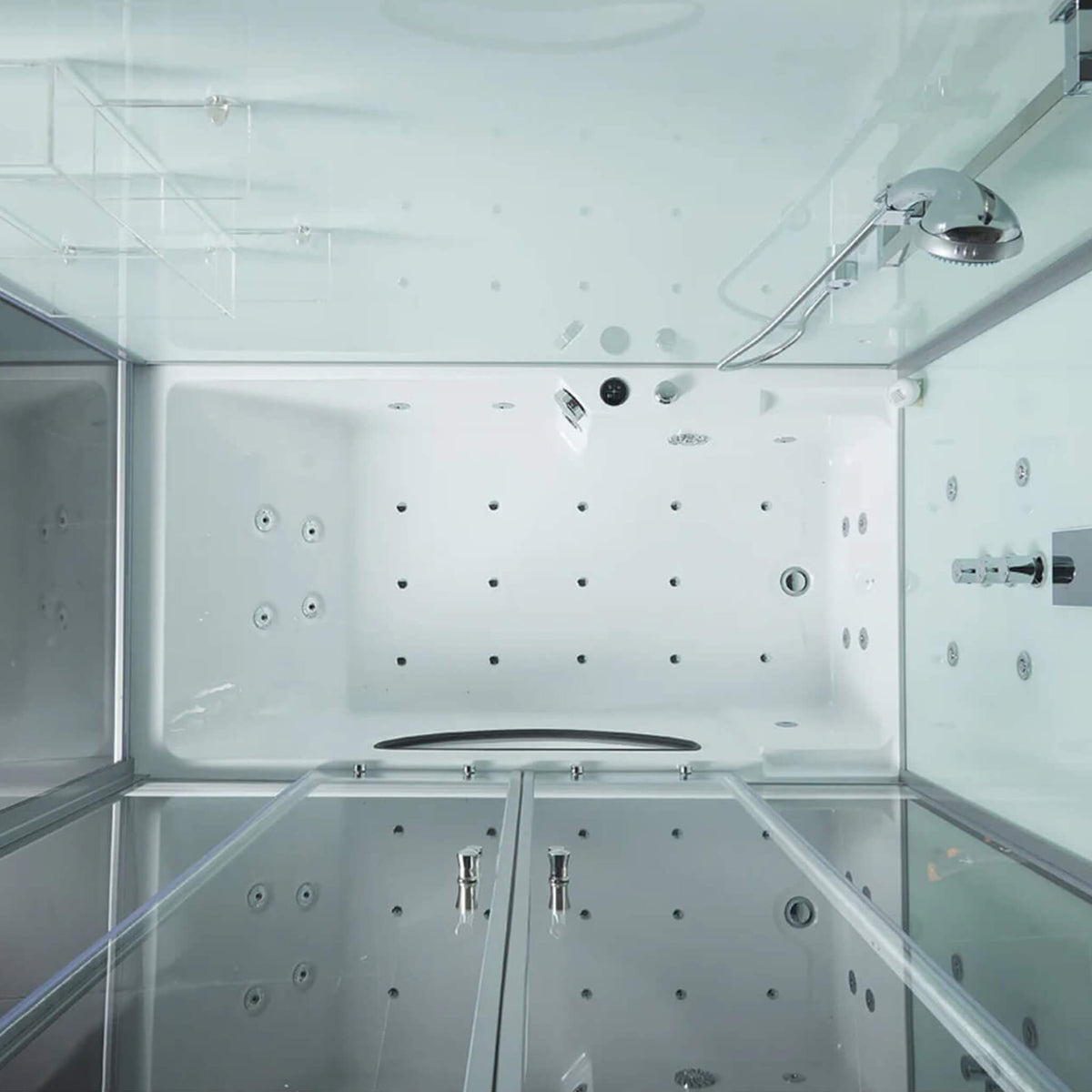

- 27 whirlpool water jets

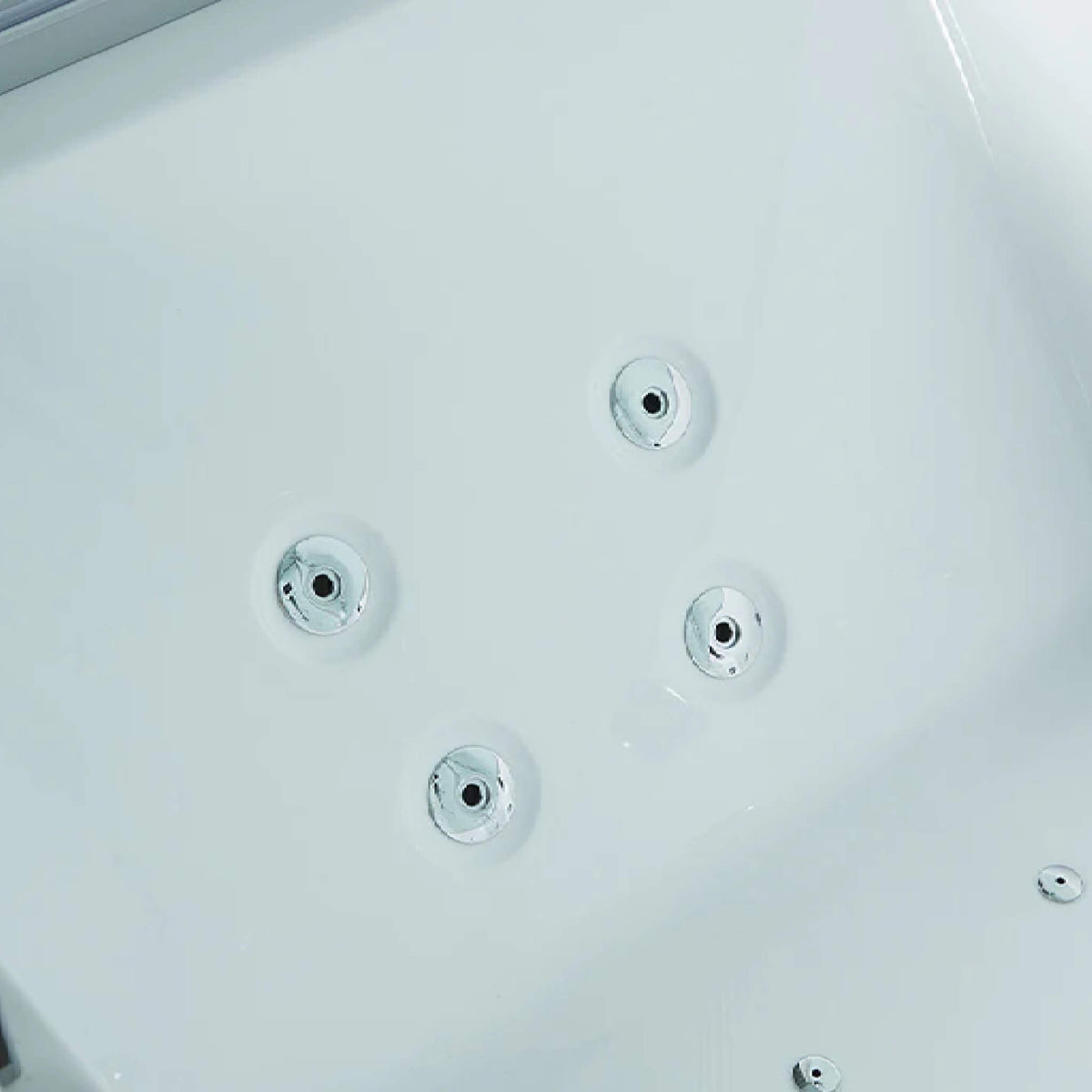

- Six focused body jets

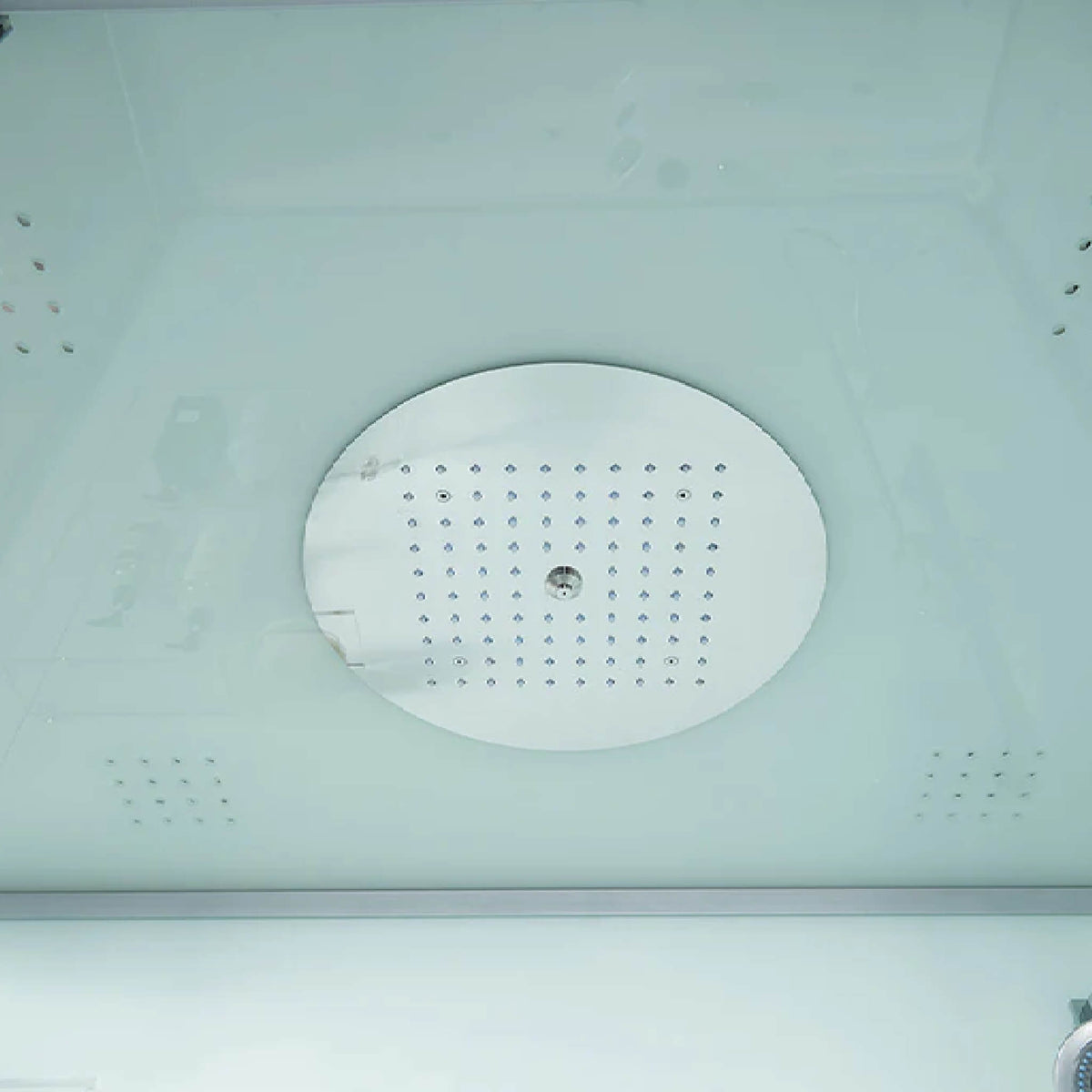

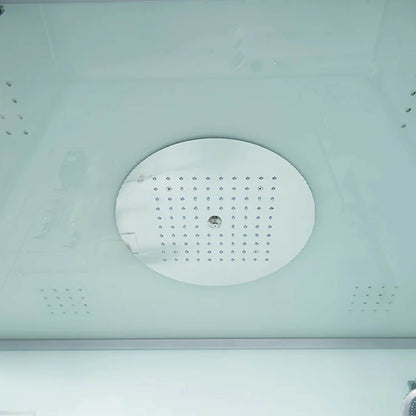

- Overhead rainfall shower

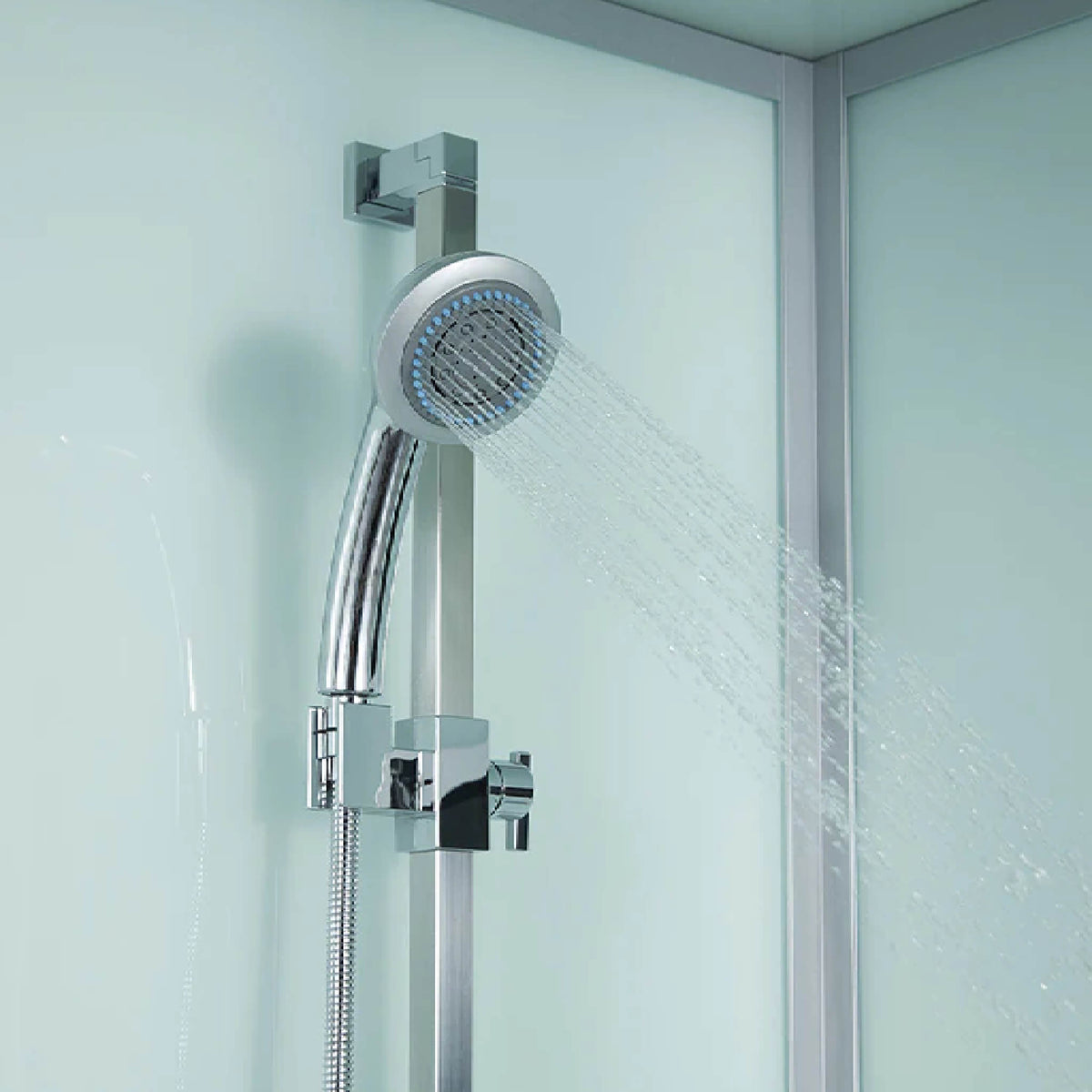

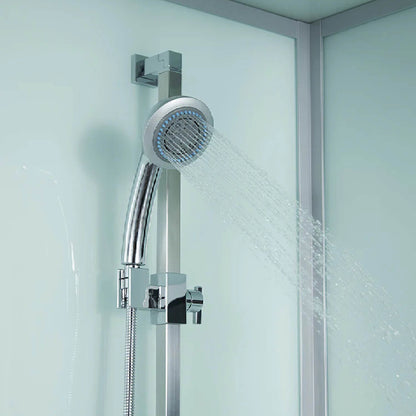

- Adjustable handheld shower
- Waterfall tub inlet
- Built-in foot-water jets

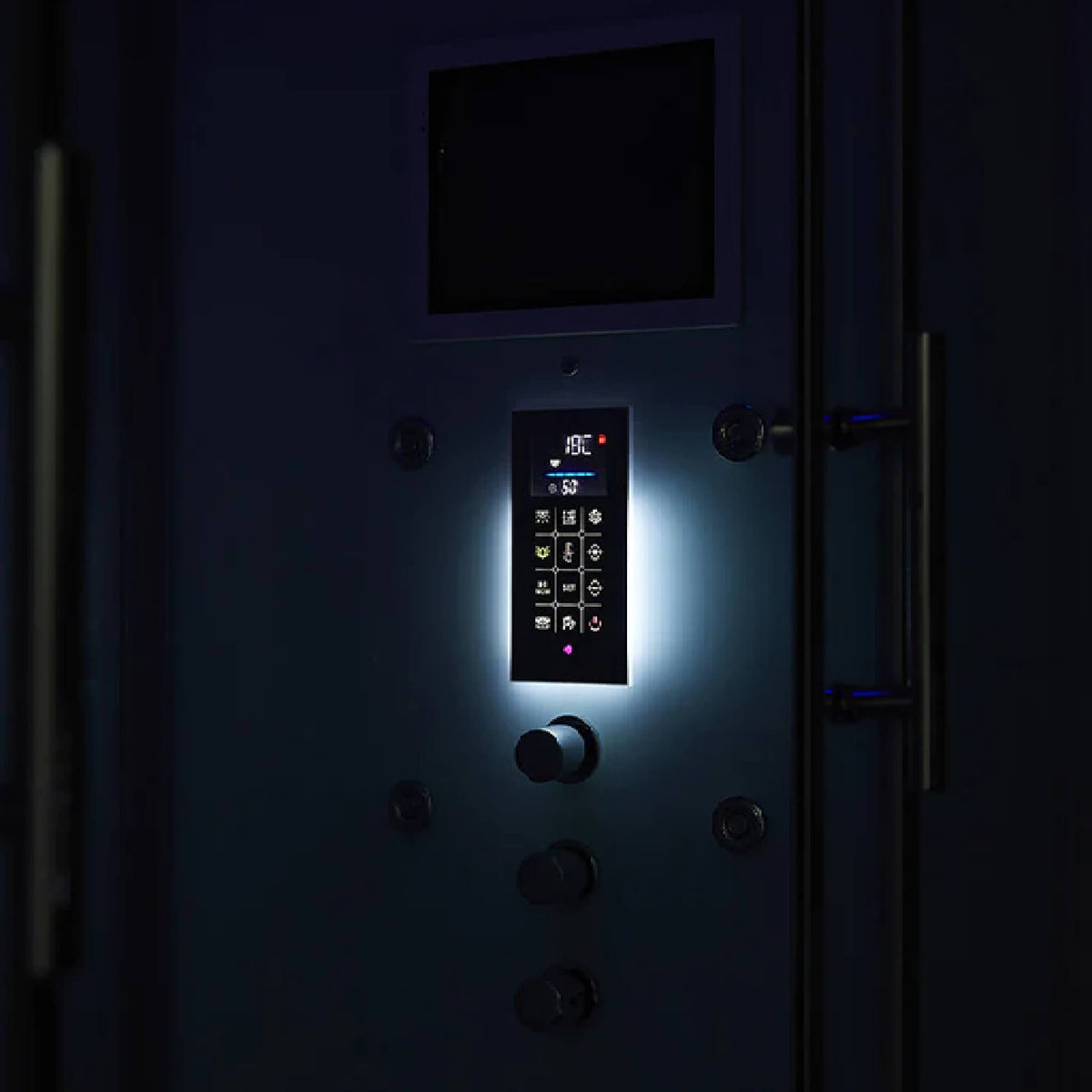

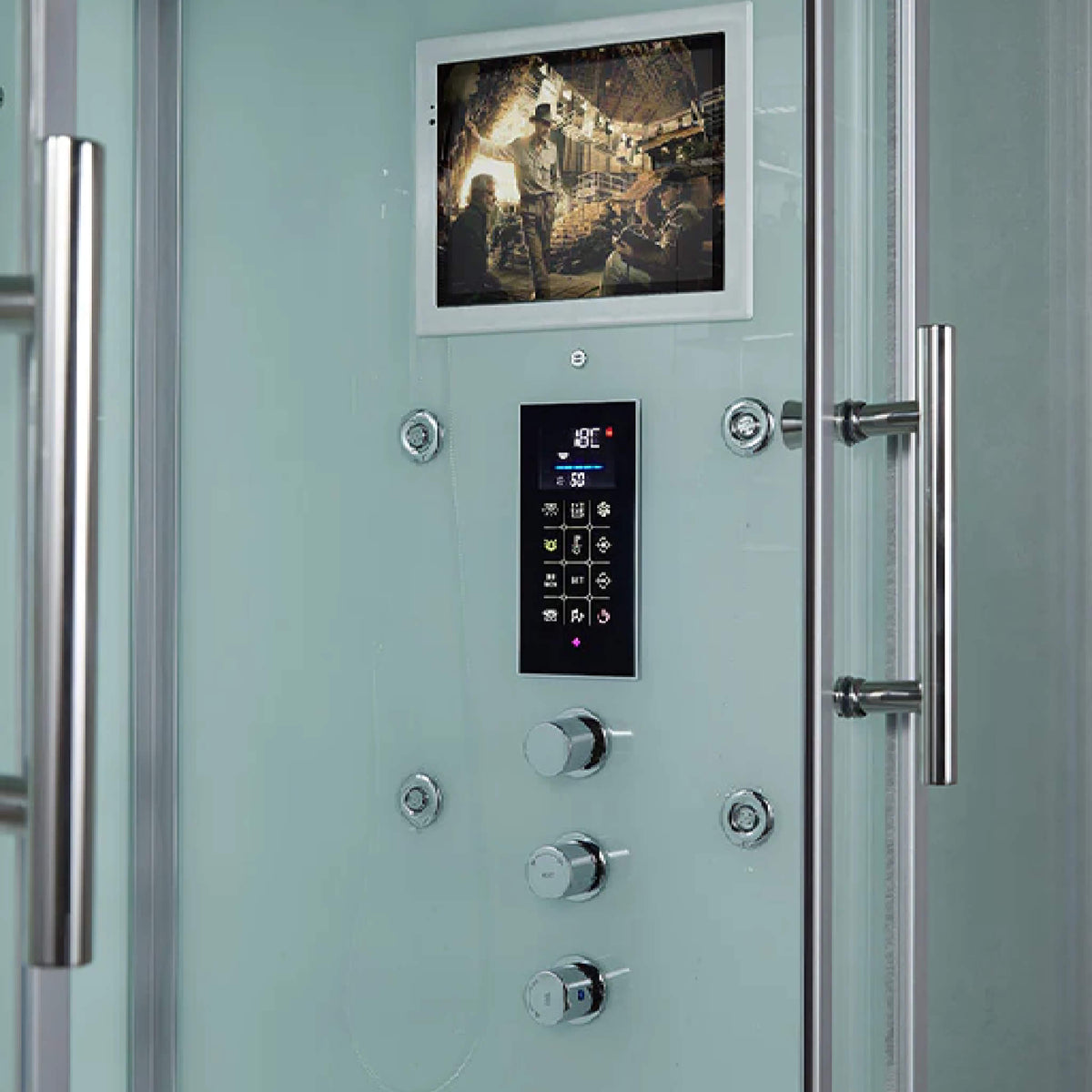

- 12-inch Android smart display
- Bluetooth connectivity
- FM radio and MP3 playback
- Integrated speakers
- Built-in telephone handset
- Multicolor interior lighting

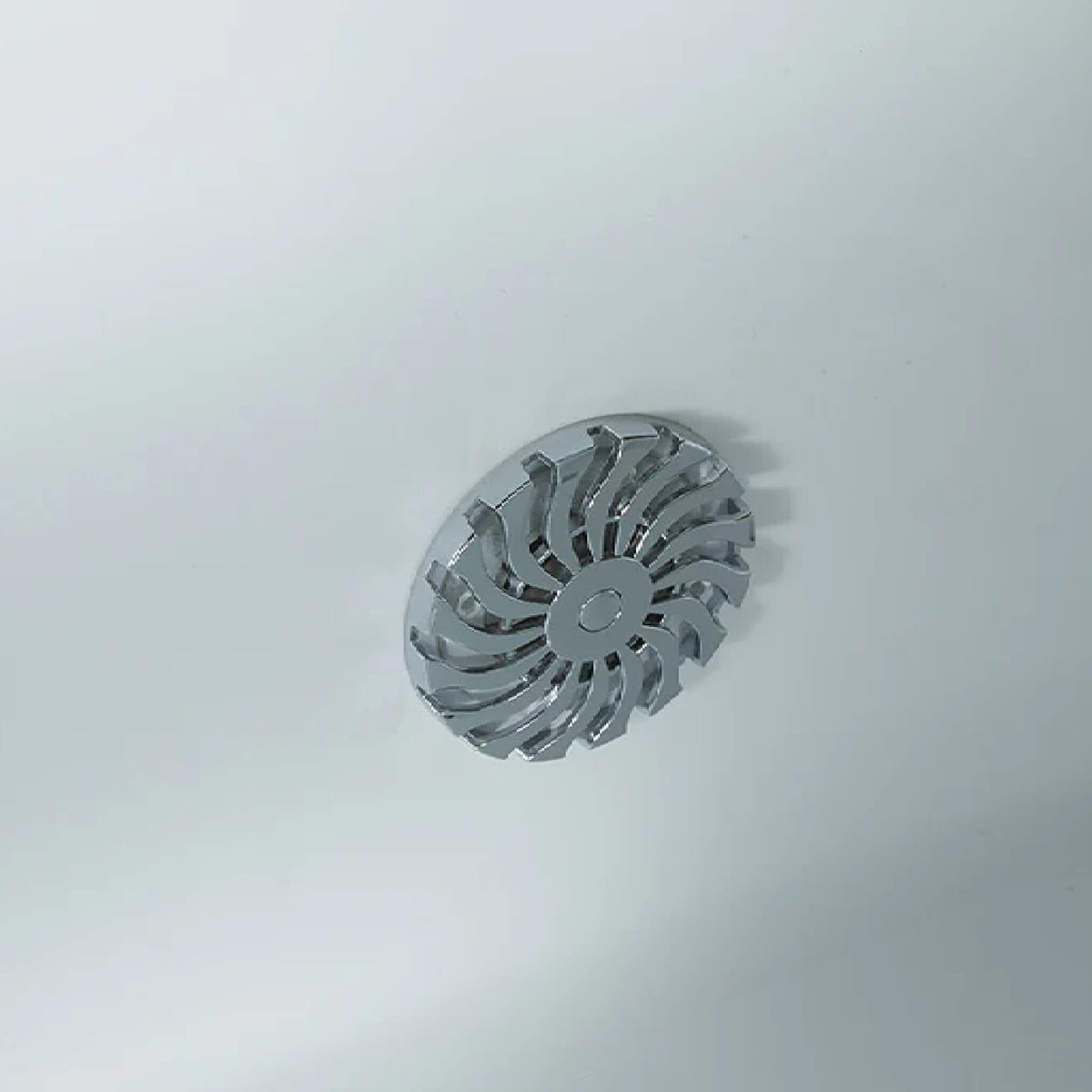

- Aromatherapy port
- Ventilation fan

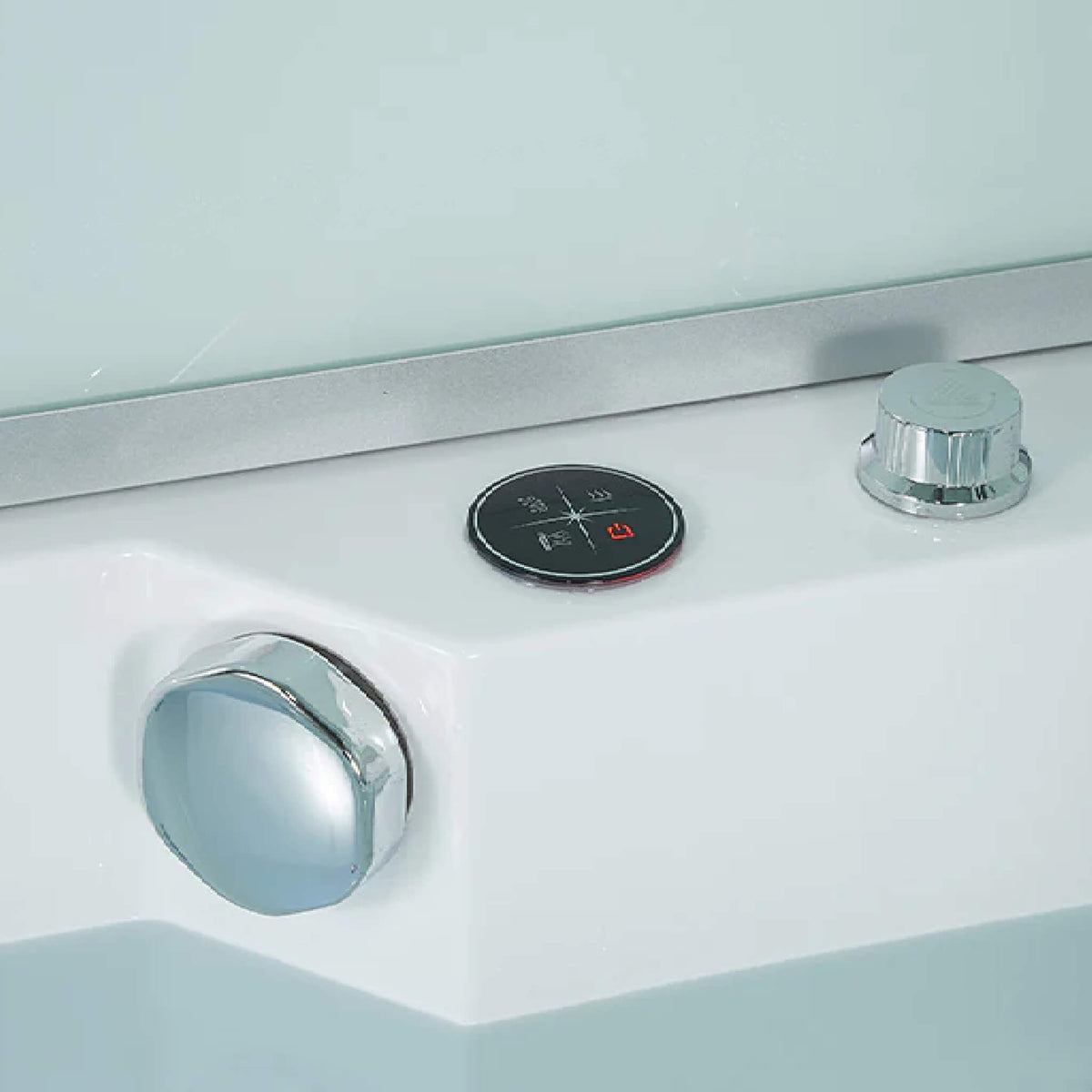

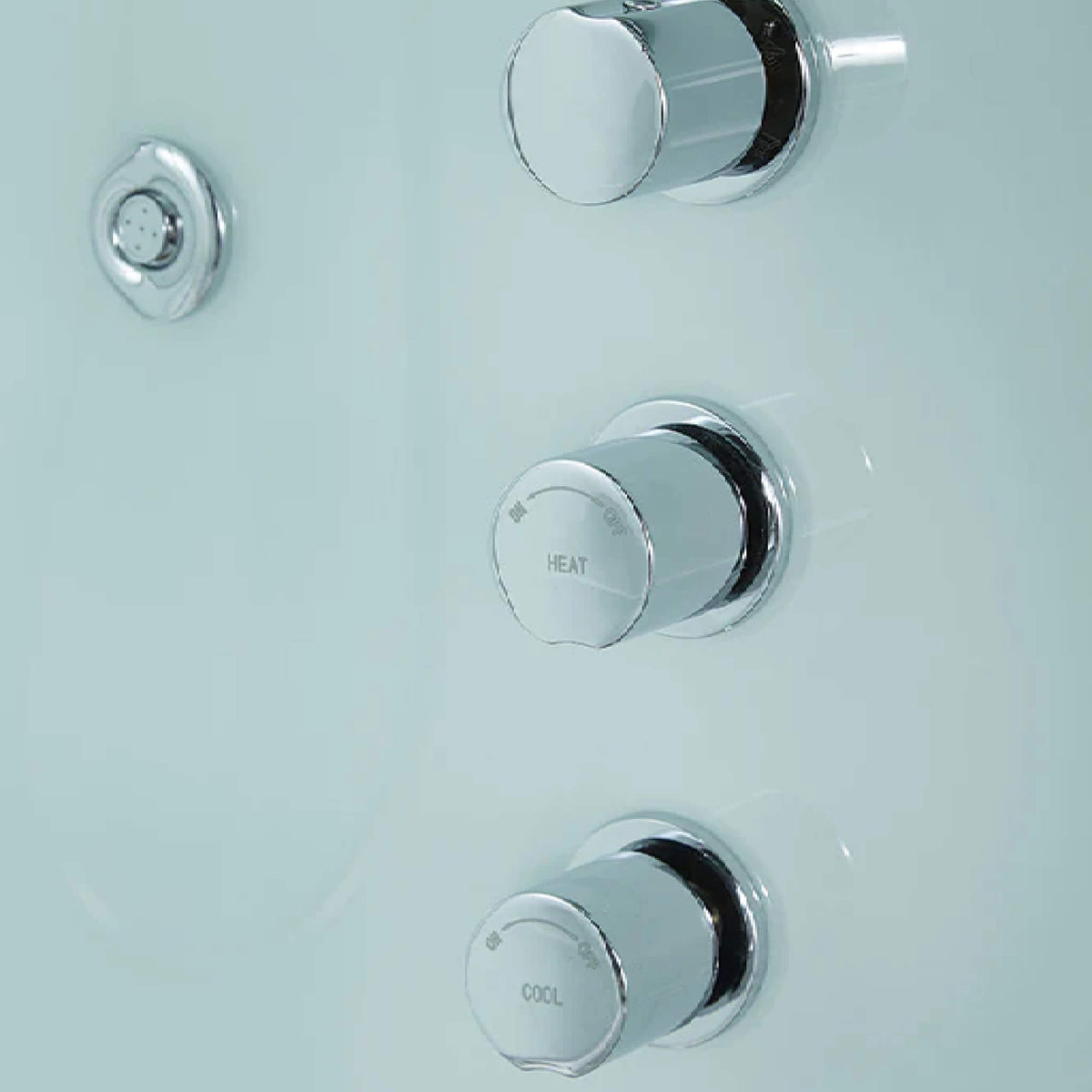

- Adjustable temperature and water controls
- Reinforced acrylic construction
- Stainless-steel framing and fixtures
- Tempered-glass enclosure

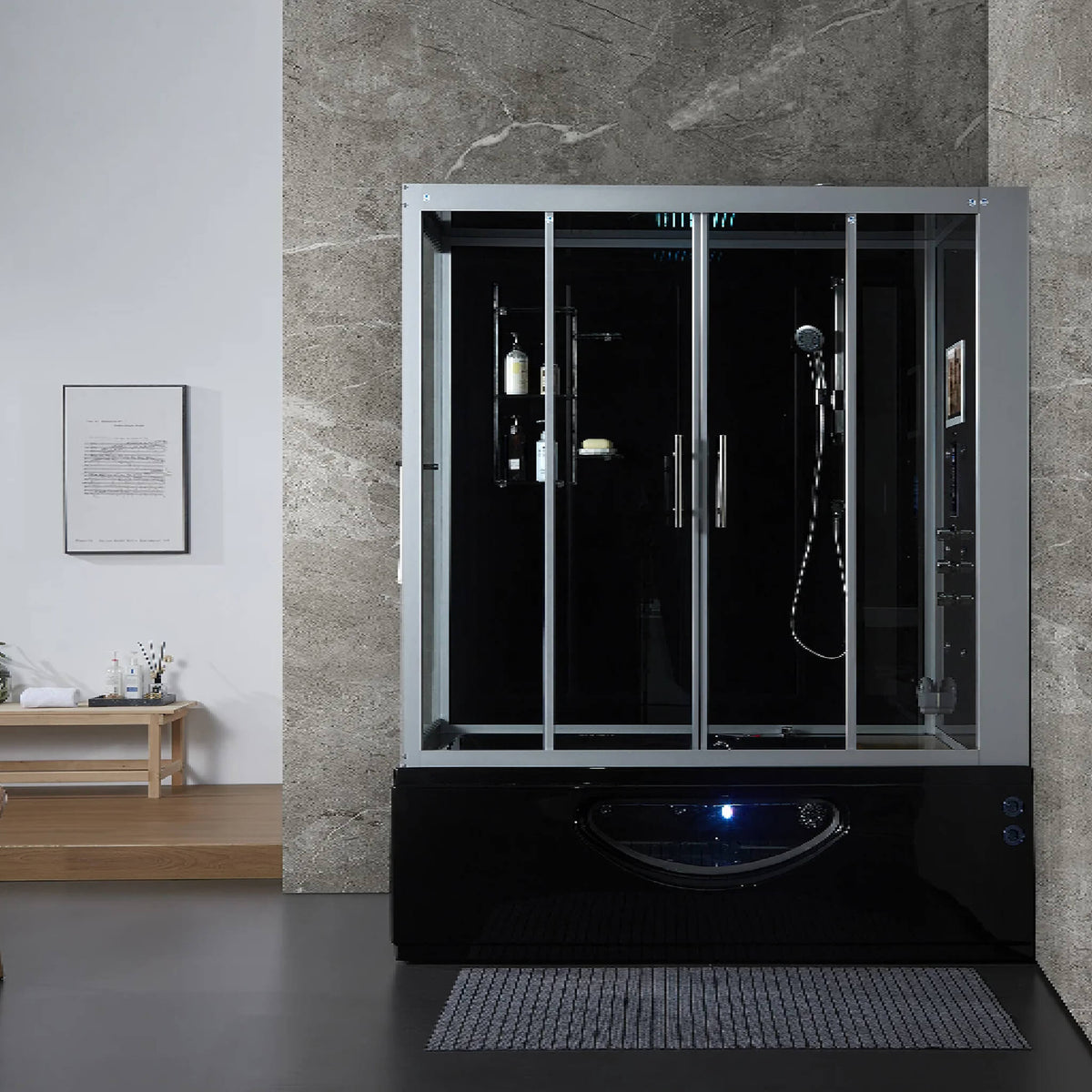

- Available in white, gray and black

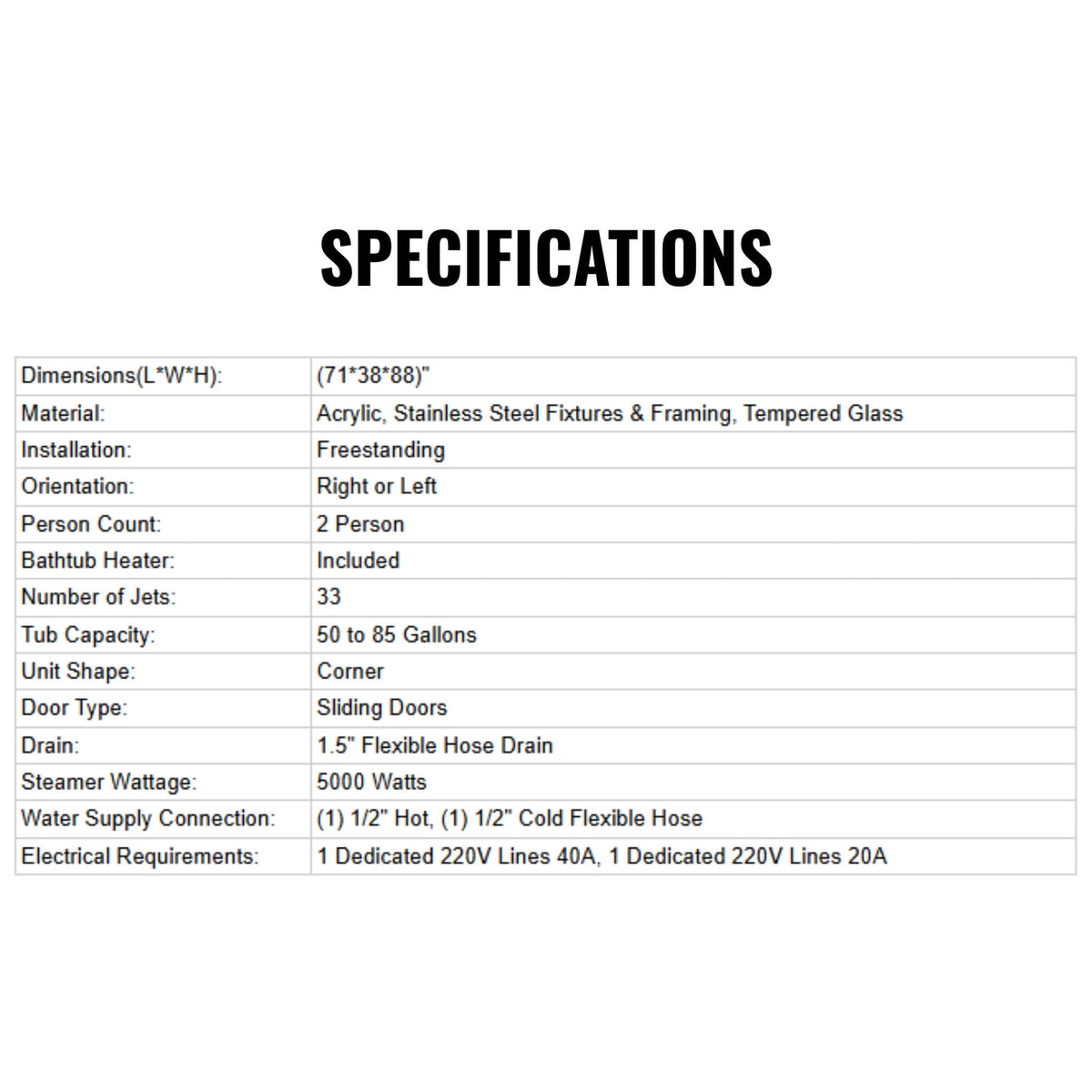

Specifications
- Brand: Maya Bath
- Product line: Platinum Catania
- Model: SAK42985
- Product type: Steam shower and whirlpool bathtub combination

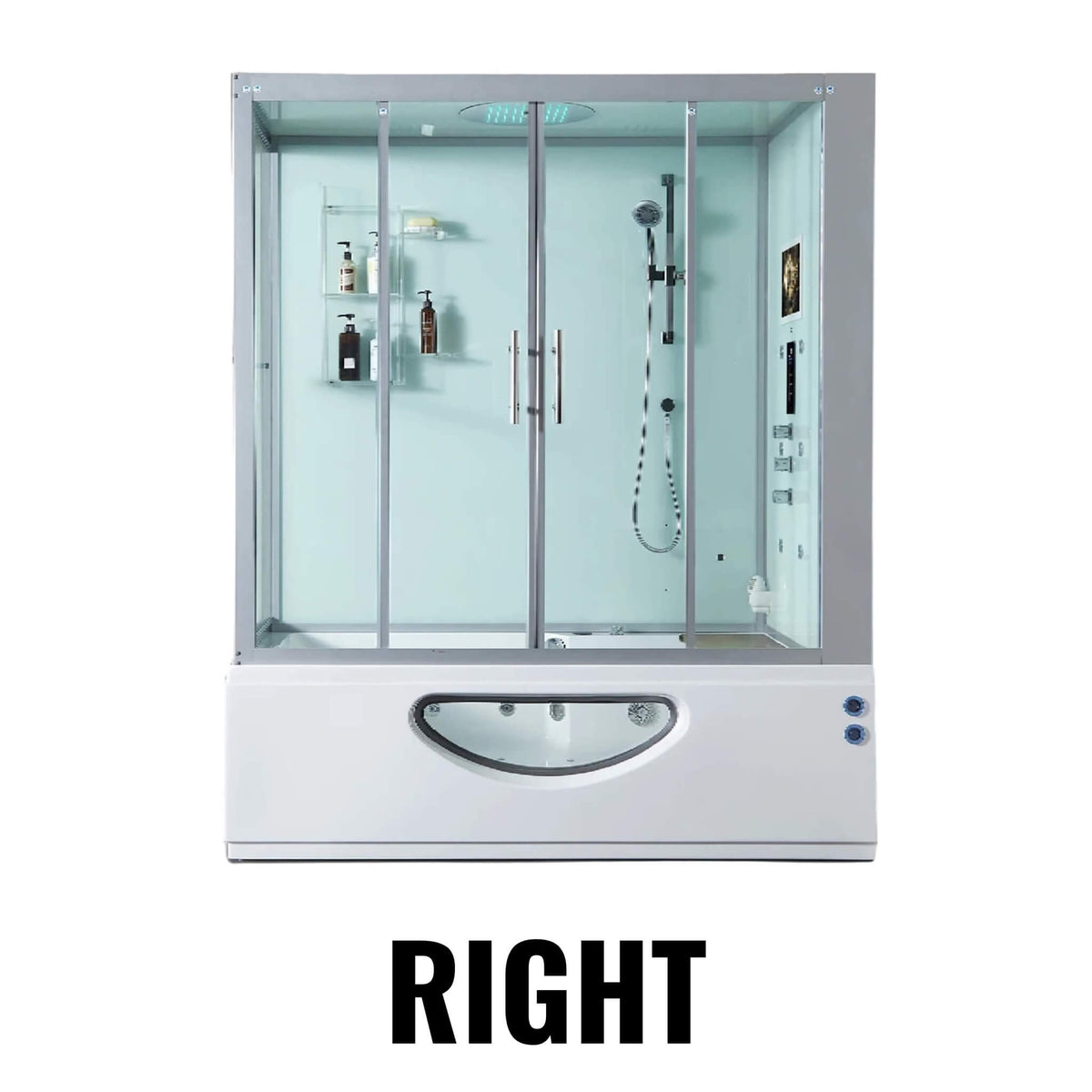

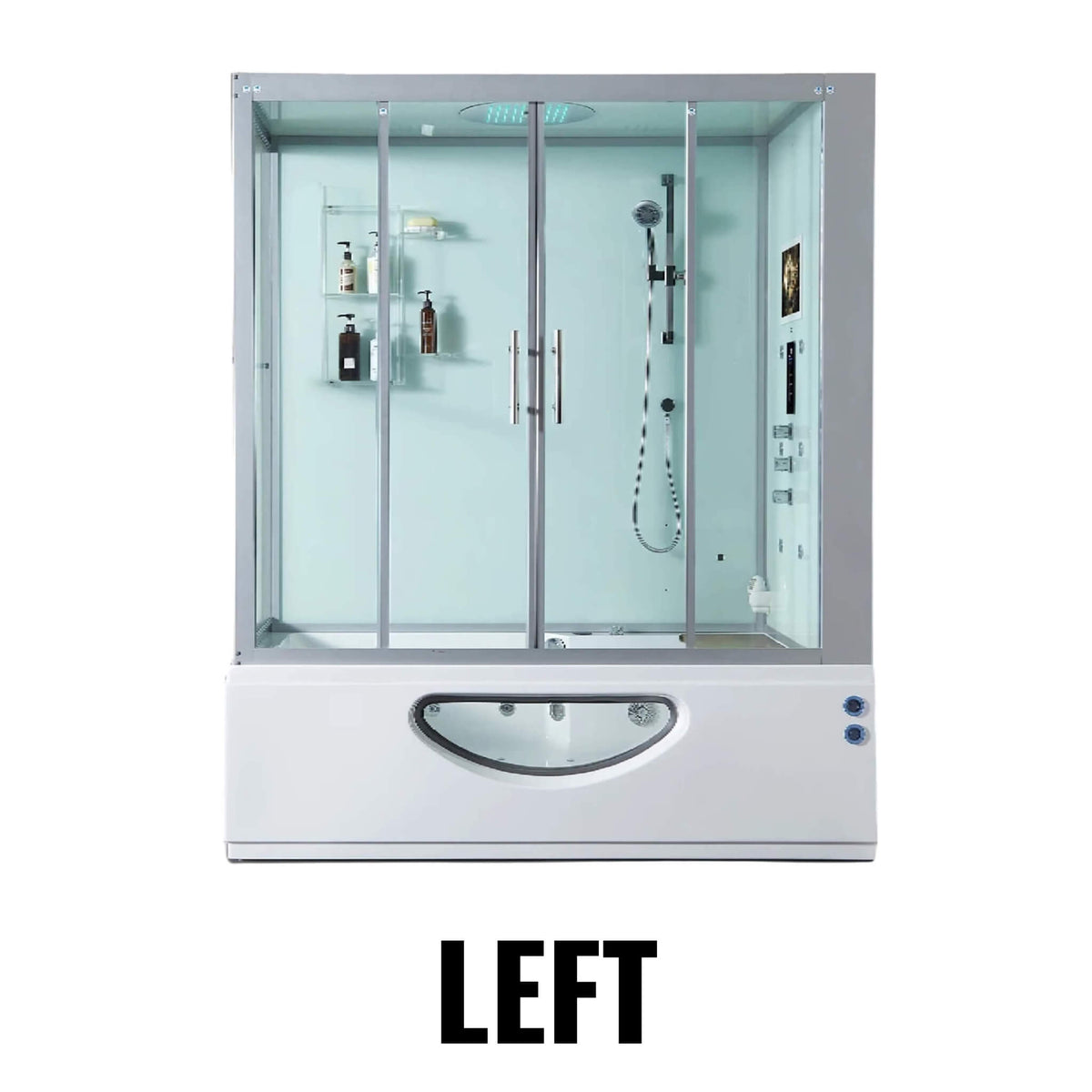

- Installation orientation: Corner
- Exterior dimensions: 71"L × 38"W × 88"H
- Metric dimensions: Approximately 1790 × 960 × 2230 mm
- Whirlpool jets: 27
- Focused body jets: 6
- Display: 12-inch Android smart display
- Audio: Bluetooth, FM radio, MP3 playback and integrated speakers
- Telephone: Integrated handset
- Shower fixtures: Overhead rainfall shower and handheld shower
- Steam generator rated power: 5,000W
- Steam generator power supply: 240V, 60Hz
- Recommended operating water pressure: 0.2–0.4 MPa
- Recommended water flow: 8–12 liters per minute
- Hot and cold water connections: DN15 / G1/2
- Drain connection: DN40
- Recommended floor drain opening: DN50 or larger
- Construction: Reinforced acrylic, stainless-steel fixtures and tempered glass
- Available colors: White, gray and black
- White SKU: SAK42985-WH
- Gray SKU: SAK42985-GY
- Black SKU: SAK42985-BK
- Installation location: Indoor residential bathroom
Assembly
Assembly and professional installation are required. The enclosure panels, glass, roof, shower fixtures, seating, shelves, water lines, drain, steam generator and electrical components must be assembled and connected according to the manufacturer’s installation manual.
The installation site requires hot and cold water supplies, suitable drainage and properly grounded electrical service. Electrical installation must be completed by a licensed electrician using the required dedicated circuit and ground-fault protection. Plumbing and drainage connections should be completed by a licensed plumber.
Verify the unit’s dimensions, orientation, door clearance, supply locations and electrical rating before delivery and installation. All work must comply with applicable building, plumbing and electrical codes.
Warranty
Maya Bath provides:
- Parts warranty: One year against qualifying defects
- Structural warranty: Five years against qualifying manufacturer defects
Warranty coverage is subject to the manufacturer’s current terms, exclusions, installation requirements and claim procedures. Labor, shipping, normal wear, accidental damage and improper installation may not be covered.
