Product Description

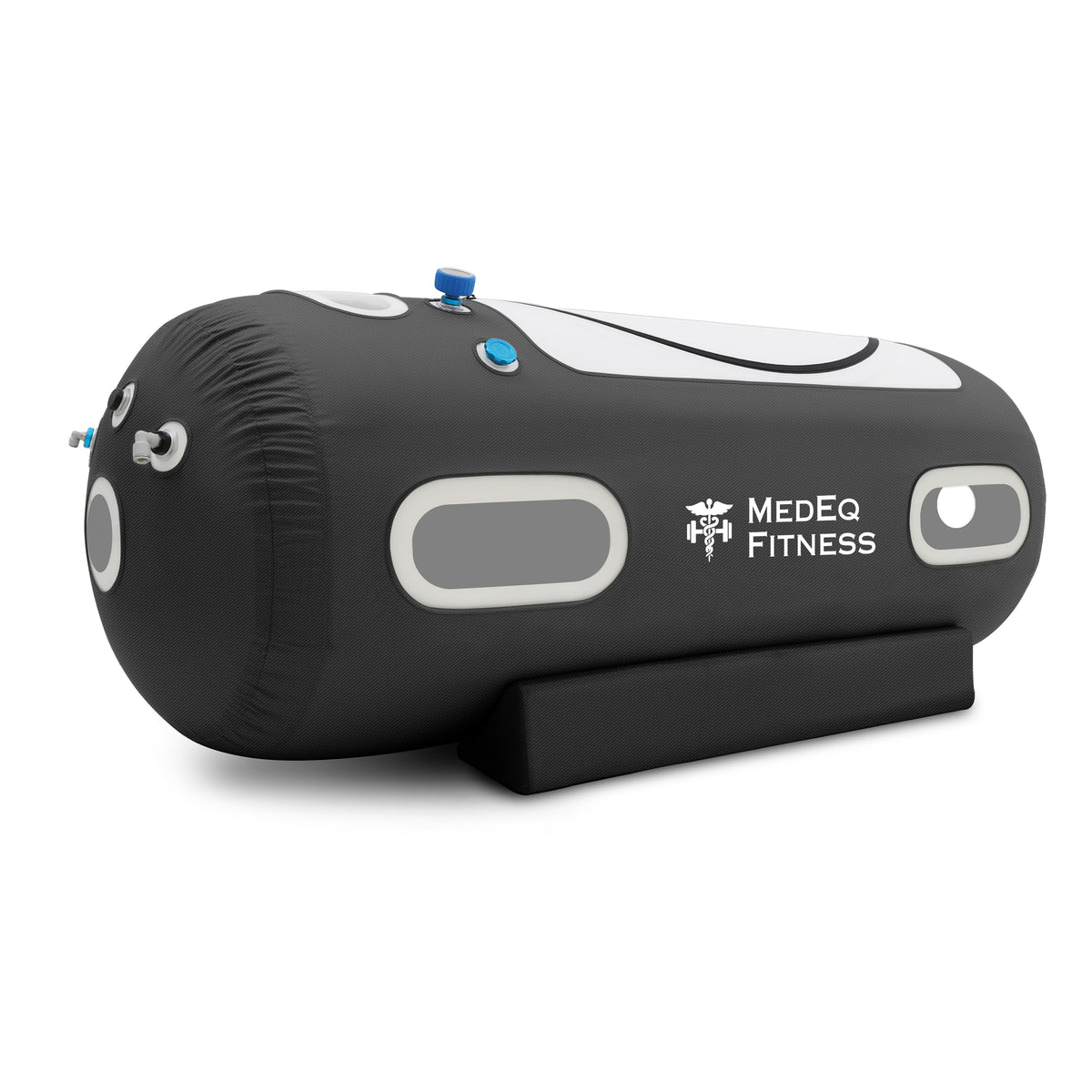

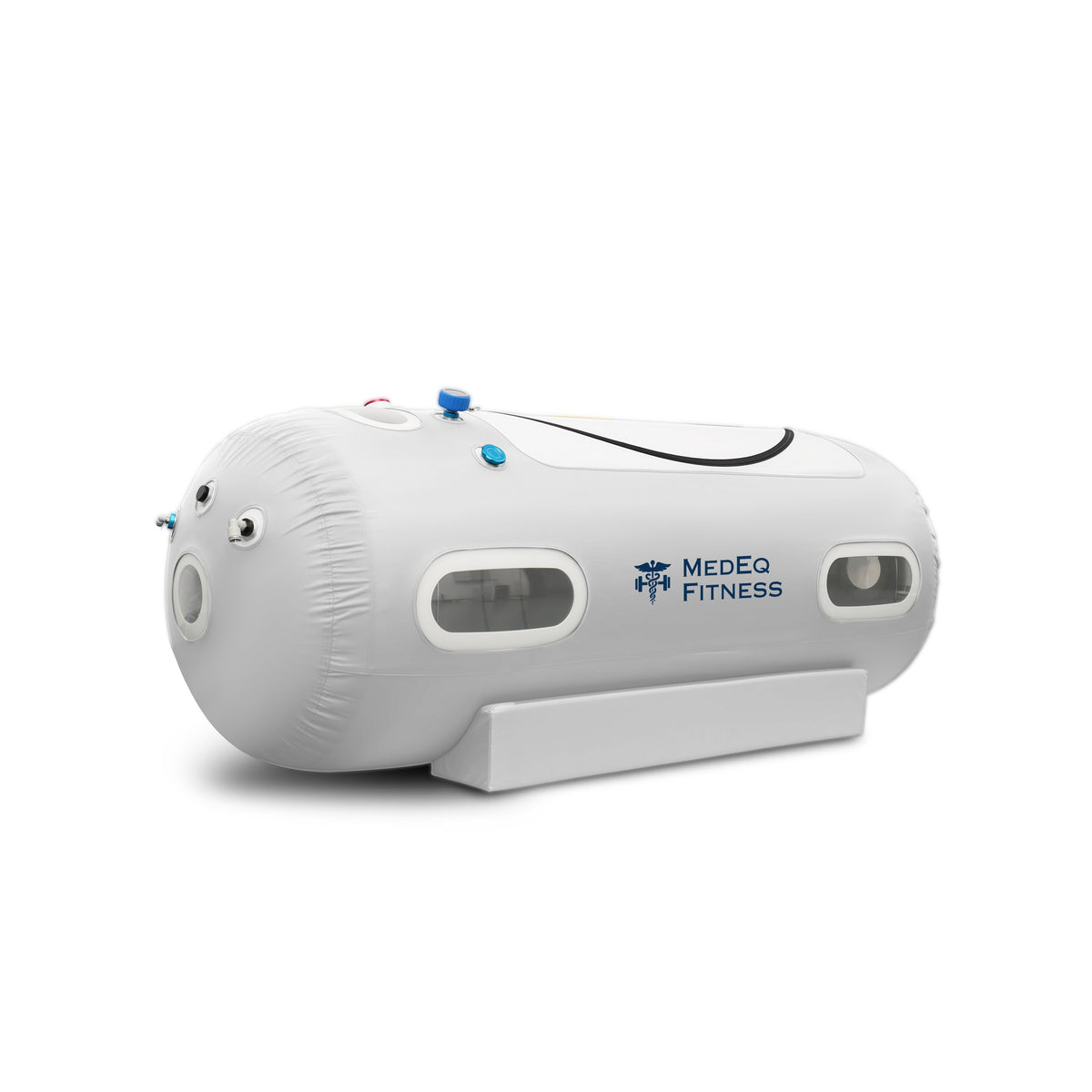

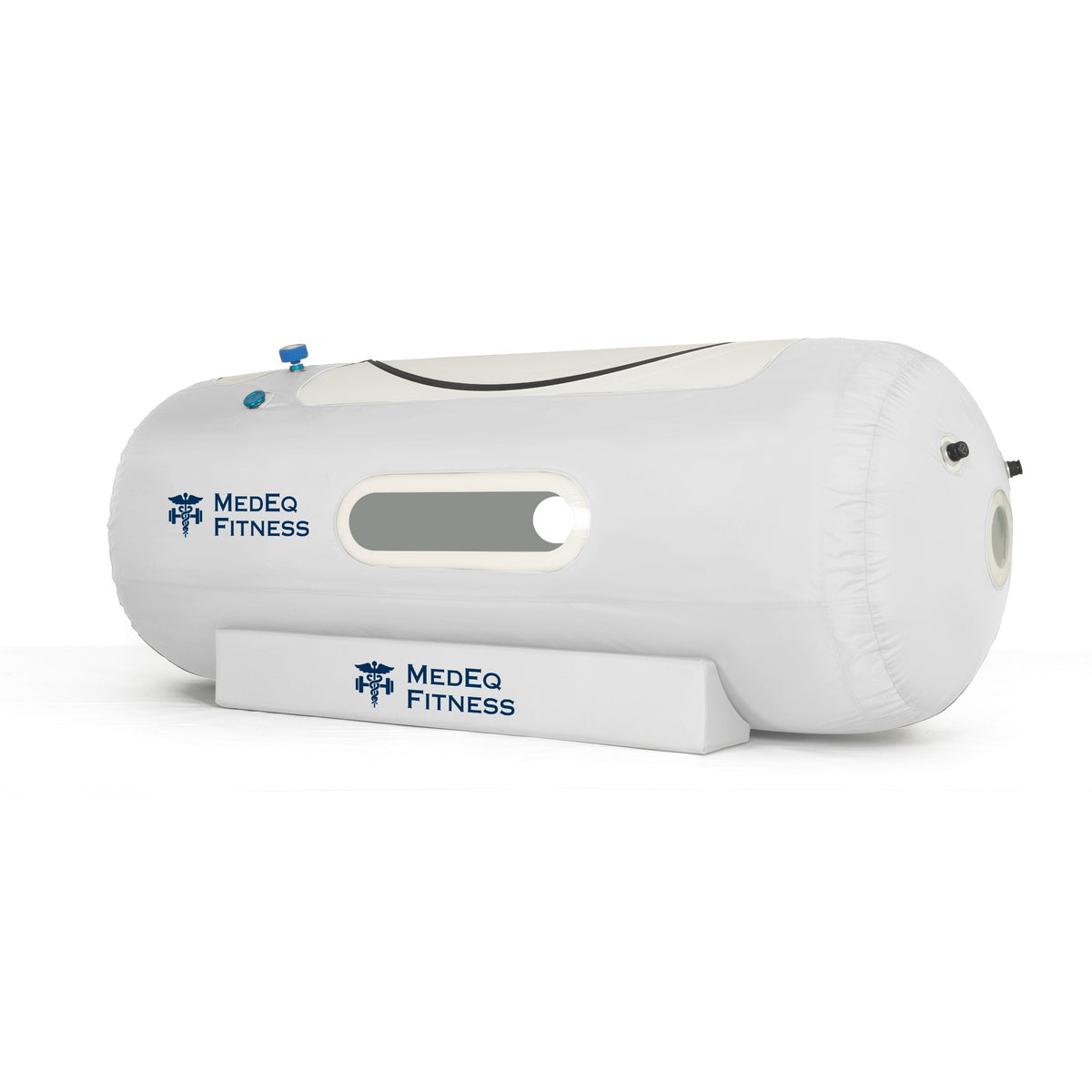

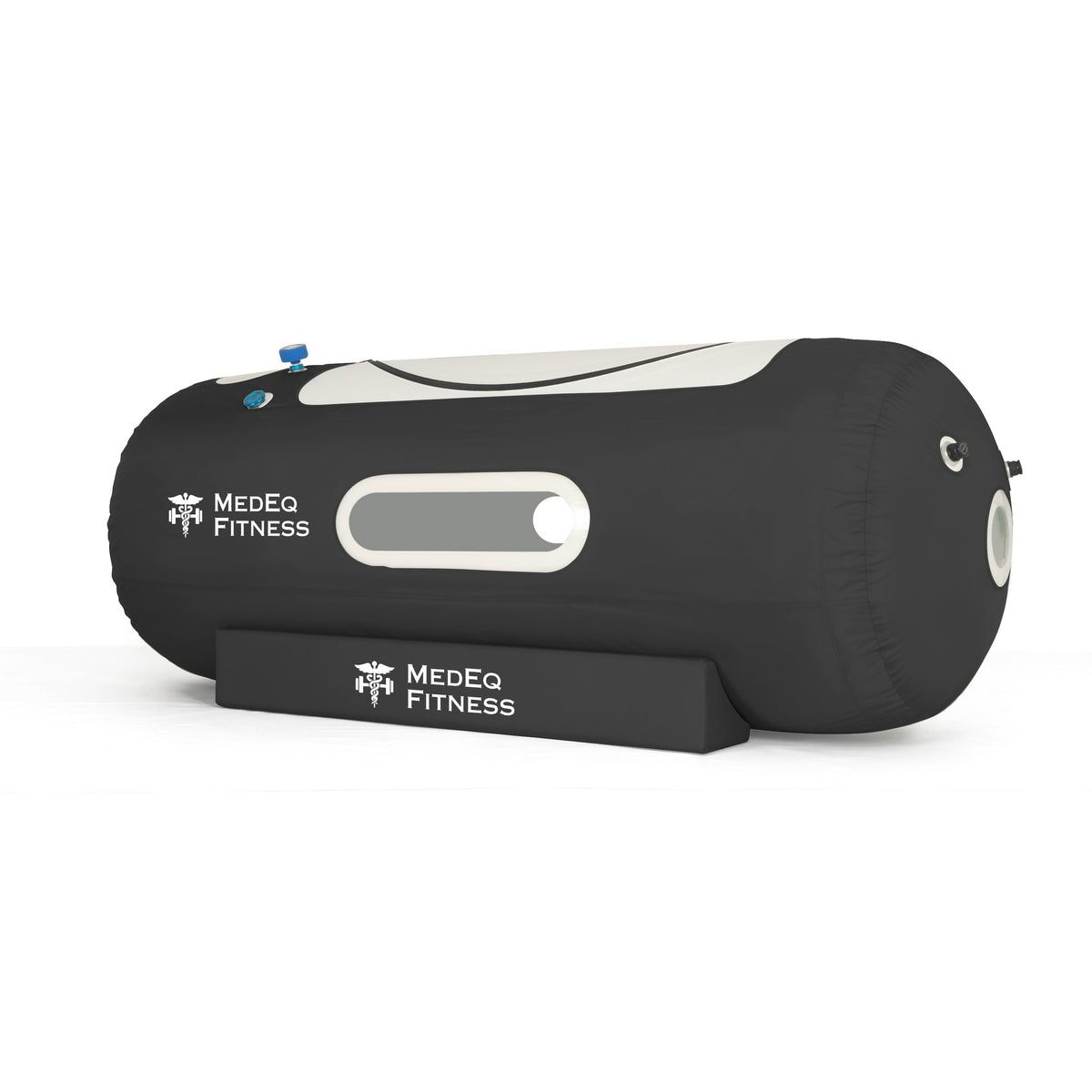

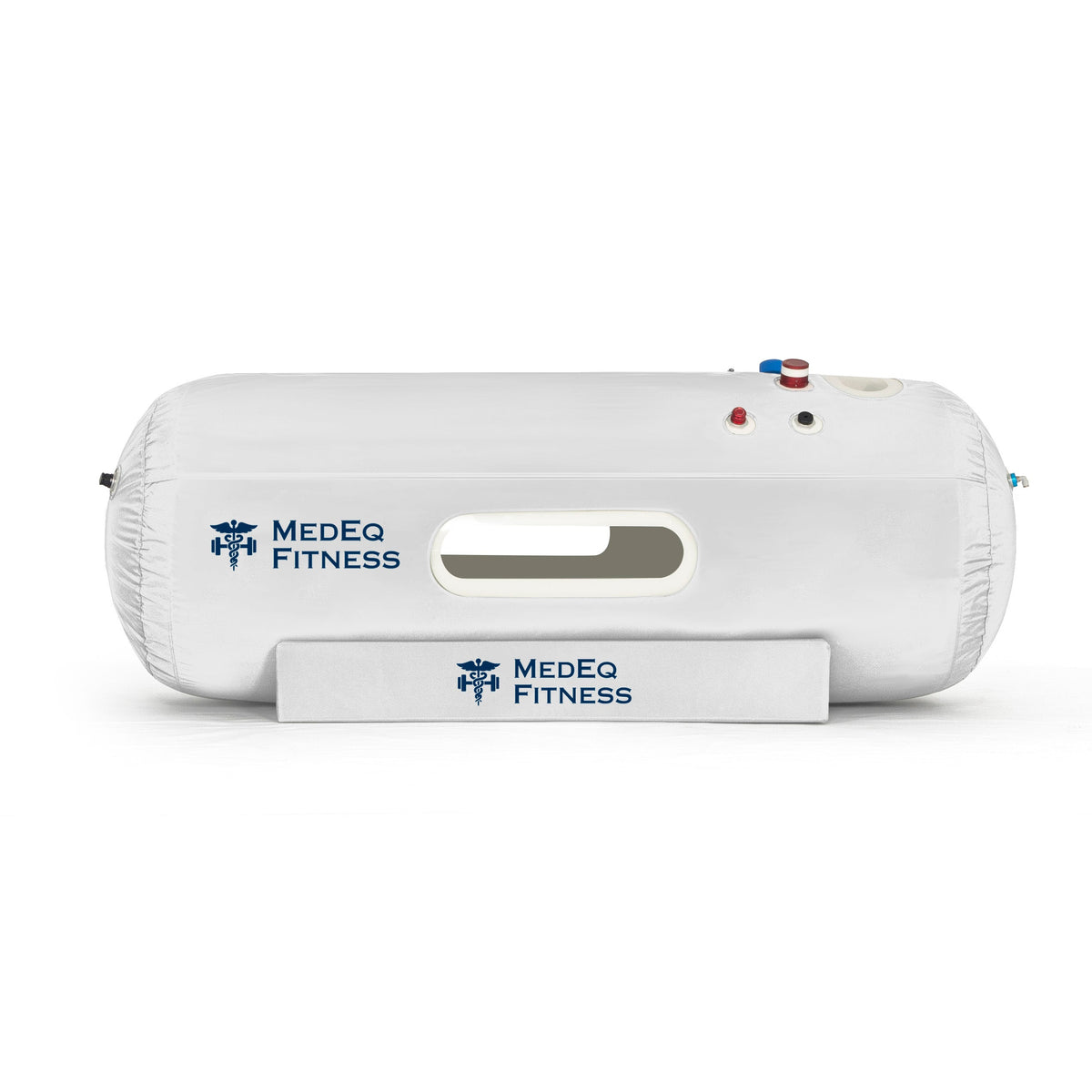

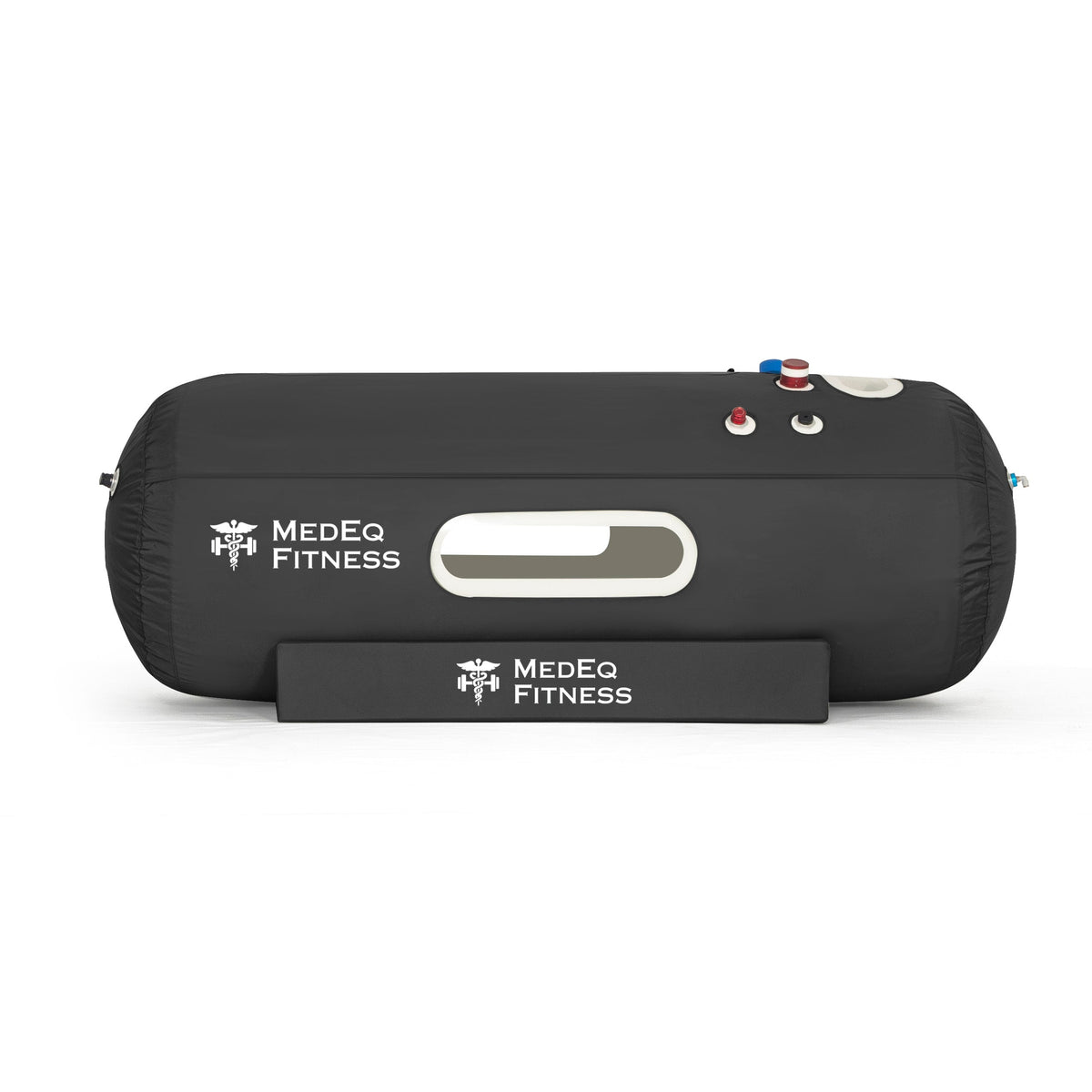

The MedEq TimeCapsule Air 1.5 is a foldable, lying-style hyperbaric chamber with selectable operating pressures of 1.3 ATA and 1.5 ATA. It is available in three sizes and constructed from five-class TPU with high-frequency welded seams.
An integrated two-in-one operating unit combines a 60 L/min air compressor with a 5 L/min oxygen concentrator. Users can select a pressurized hyperbaric mode or a non-pressurized oxygen mode. Internal and external gauges display chamber pressure, while the system also provides real-time oxygen-concentration monitoring.
A wireless handheld remote supports operation from inside the chamber. Overhead and side windows provide interior visibility, while included air columns support the chamber’s structure during use.
Features
- Foldable soft-shell chamber
- Horizontal lying configuration
- Selectable 1.3 ATA or 1.5 ATA pressure
- Three available chamber sizes
- Five-class TPU construction
- High-frequency welded seams
- Integrated air compressor and oxygen concentrator
- Pressurized and non-pressurized operating modes
- Wireless handheld remote
- Internal and external pressure gauges
- Real-time pressure and oxygen monitoring
- Overhead and side viewing windows
- Two automatic pressure-relief valves
- One manual pressure-relief valve
- Three oxygen and air inlet valves
- Sponge silencer for reduced airflow noise
- Compatible with 110V or 220V electrical systems
- Optional frame, air cooler, static-discharge mat, mattress, and pillows
Specifications
- Brand: MedEq Fitness
- Manufacturer: OxyPrime/OxyRevo
- Model: TimeCapsule Air 1.5
- Chamber type: Soft-shell lying-style hyperbaric chamber
- Operating pressure: 1.3 ATA or 1.5 ATA
- Approximate pressure: 4.5 PSI or 7.2 PSI
- Material: Five-class TPU

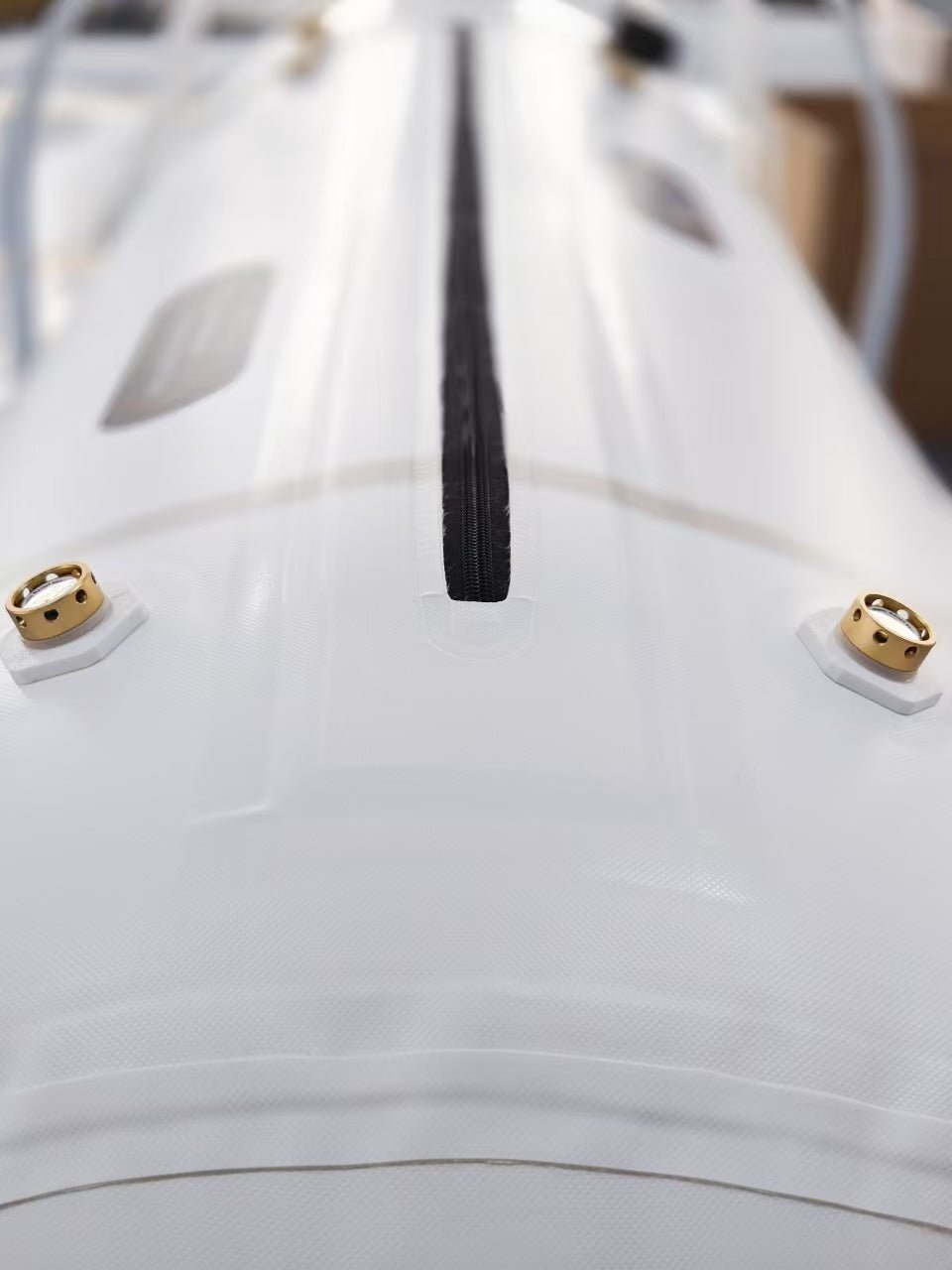

- Seam construction: High-frequency welded
- Standard size: 80 × 200 cm / approximately 32 × 79 inches
- Medium size: 85 × 210 cm / approximately 34 × 83 inches
- Large size: 90 × 220 cm / approximately 36 × 87 inches

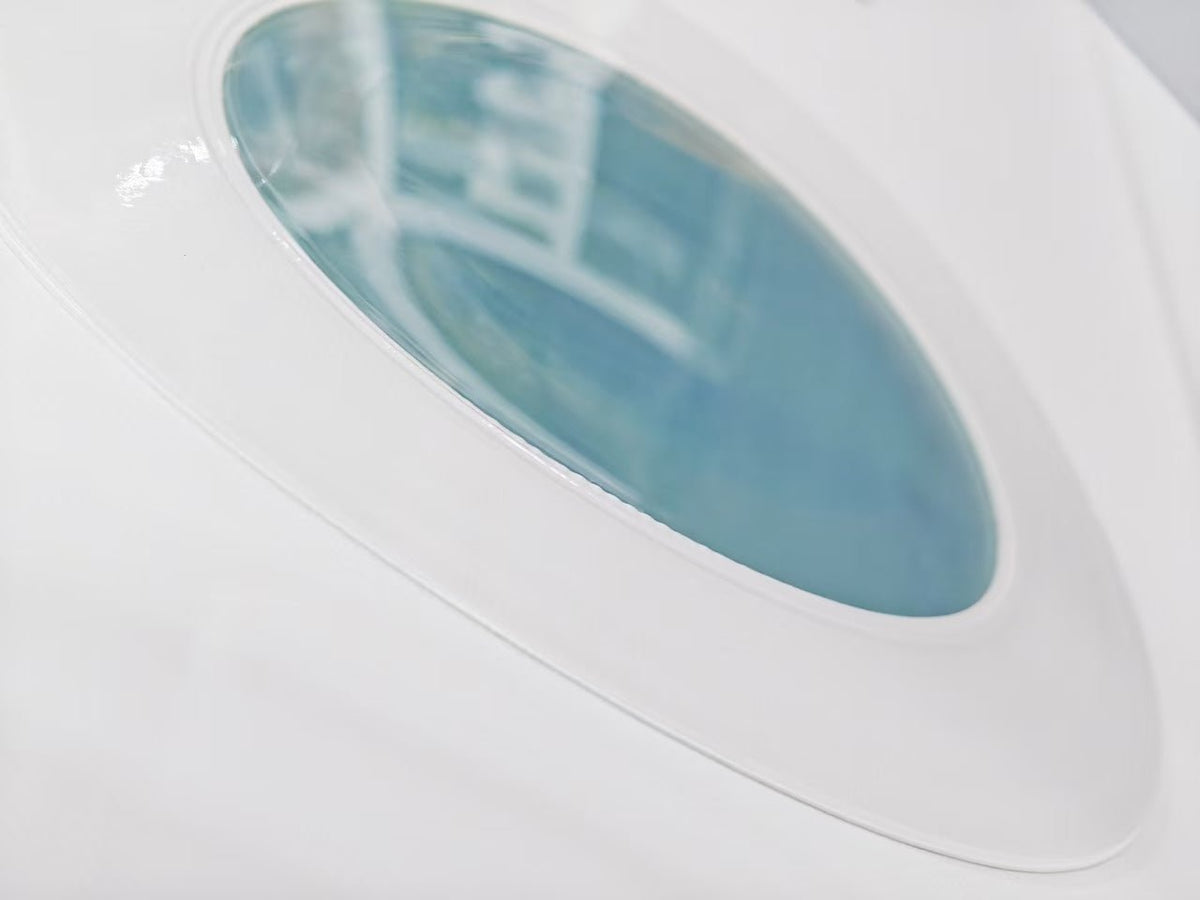

- Overhead window: 45 × 19 cm / approximately 17.7 × 7.5 inches
- Side windows: Approximately 15 cm / 5.9 inches wide on both sides
- Electrical compatibility: AC 110V, 60Hz or AC 220V, 50Hz
- Compressor airflow: 60 L/min
- Oxygen-concentrator flow: 5 L/min
- Oxygen concentration inside chamber: Maintained below 30%
- Operating modes: Pressurized hyperbaric mode and non-pressurized oxygen mode
- Operating-unit dimensions: 35 × 25 × 67 cm / approximately 13.8 × 9.8 × 26.4 inches
- Chamber colors: White or blue
- Cover options: Six customizable colors
- Manufacturer-listed certifications: ISO 13485:2016 and ICR CE H8U50250611
- Pressure-relief valves: Two automatic and one manual
- Inlet valves: Three oxygen and air inlet valves

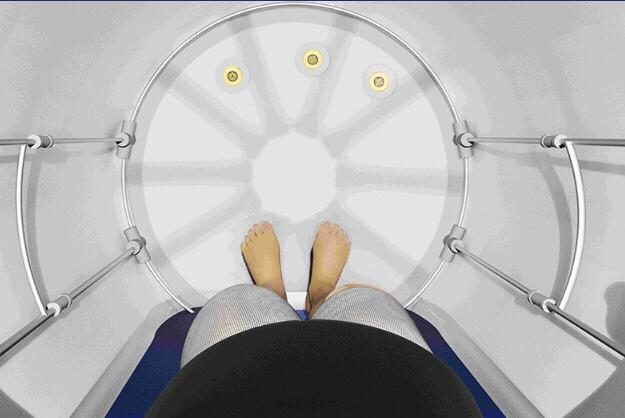

- Air columns: Two 2-meter air columns
- Pressure gauges: One internal and one external
- Included components: Soft-shell chamber, integrated compressor and oxygen concentrator, wireless remote, pressure-relief valves, inlet valves, air columns, internal and external gauges, sponge silencer, hoses, power cable, and user manual
- Optional components: Internal or external frame, air cooler, static-discharge mat, mattress, and pillows
Assembly
Position the chamber on a clean, level surface with adequate clearance for ventilation and access. Connect the air columns, hoses, valves, and integrated operating unit according to the included user manual.
Confirm that the electrical configuration matches the available 110V, 60Hz or 220V, 50Hz power supply before operation. Inspect the chamber material, zippers, gauges, valves, fittings, and hose connections before each use.
Keep flames, smoking materials, sparks, and other ignition sources away from the chamber and oxygen equipment. Operate and maintain the system only according to the manufacturer’s instructions and applicable professional guidance.
Warranty
- Chamber material and zippers: Two-year limited manufacturer warranty
- Oxygen system and compressor: One-year limited manufacturer warranty
- Wireless remote and accessories: One-year limited manufacturer warranty
Coverage is subject to the manufacturer’s warranty terms, operating requirements, maintenance requirements, and exclusions.
