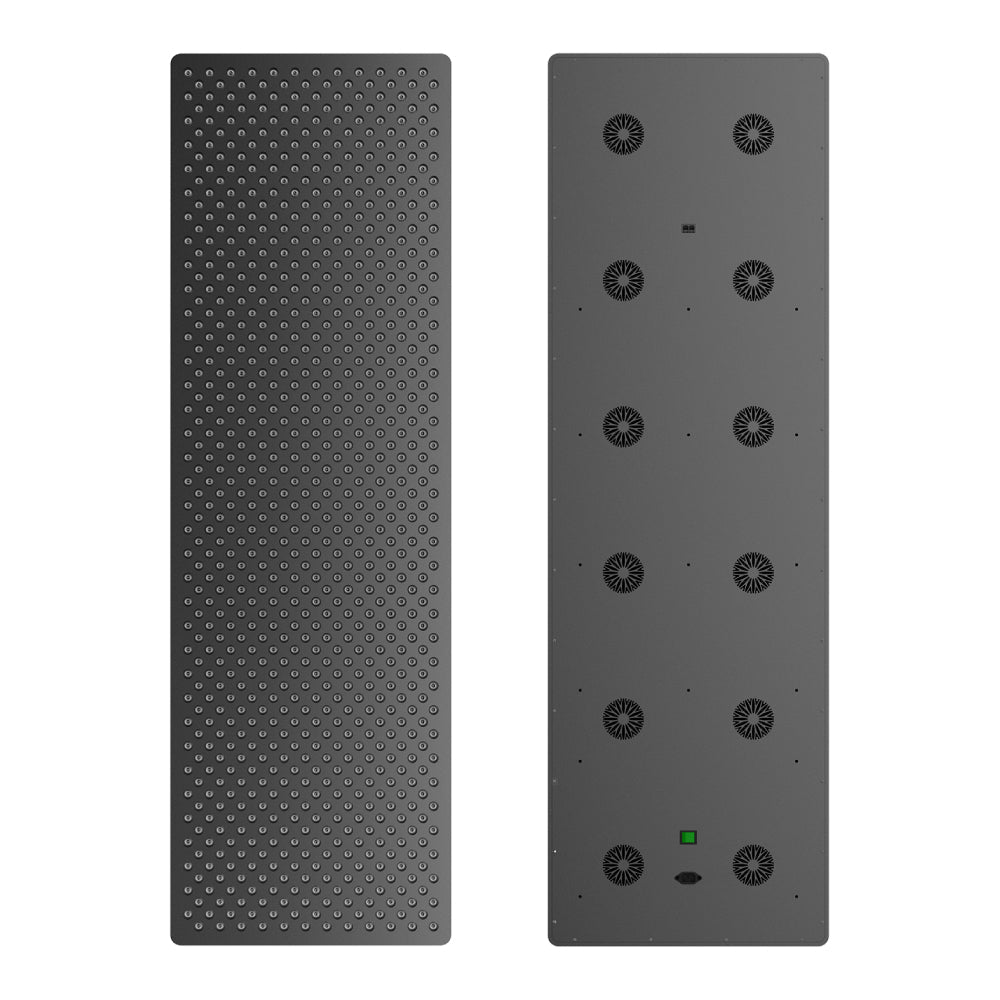

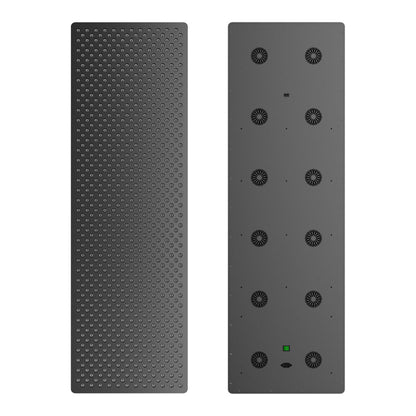

The RLT Home Total Spectrum ELITE is a full-body LED light panel featuring 864 LEDs across seven wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, and 1064nm.

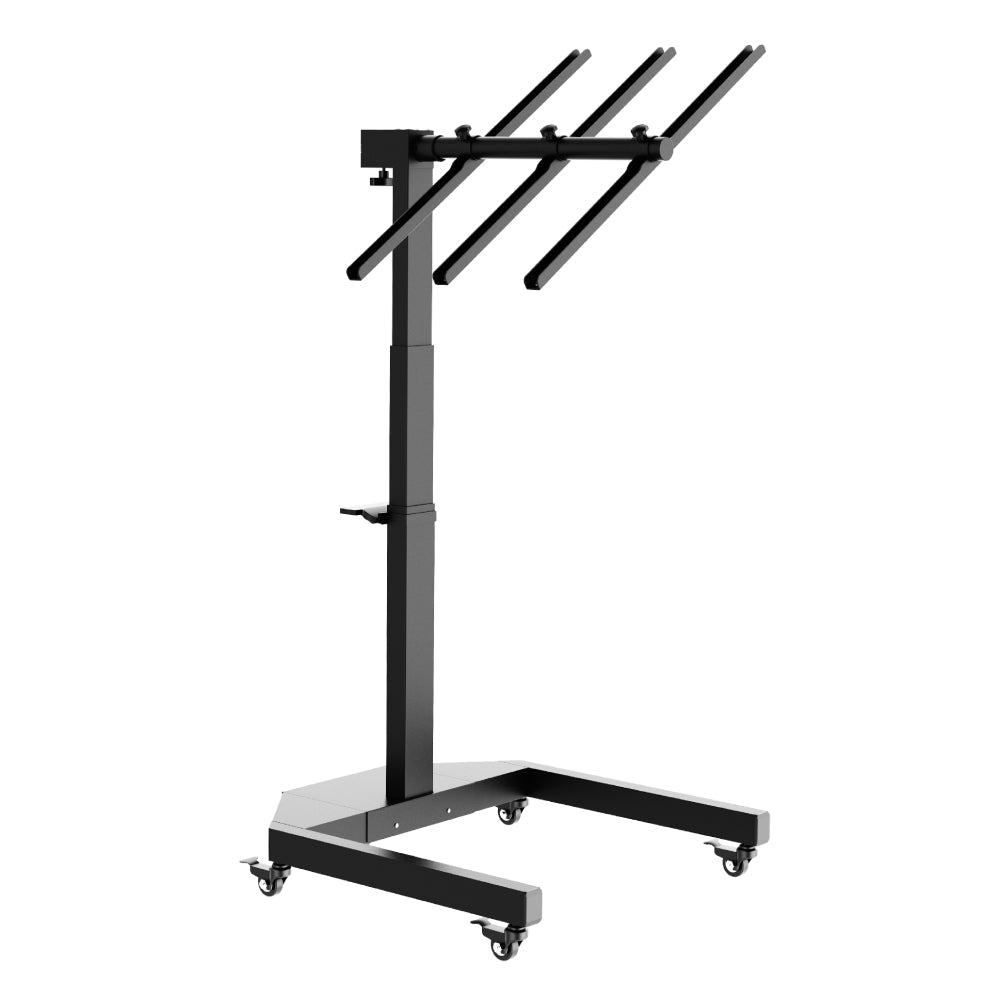

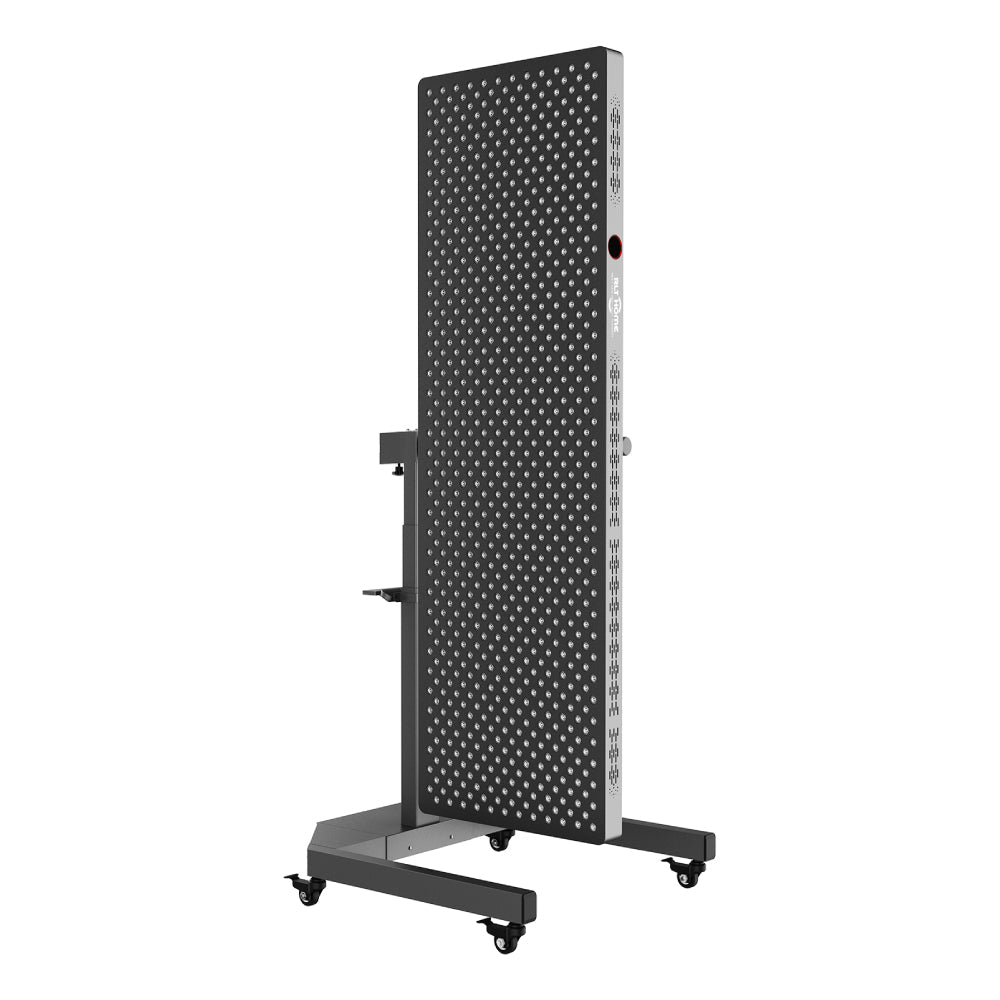

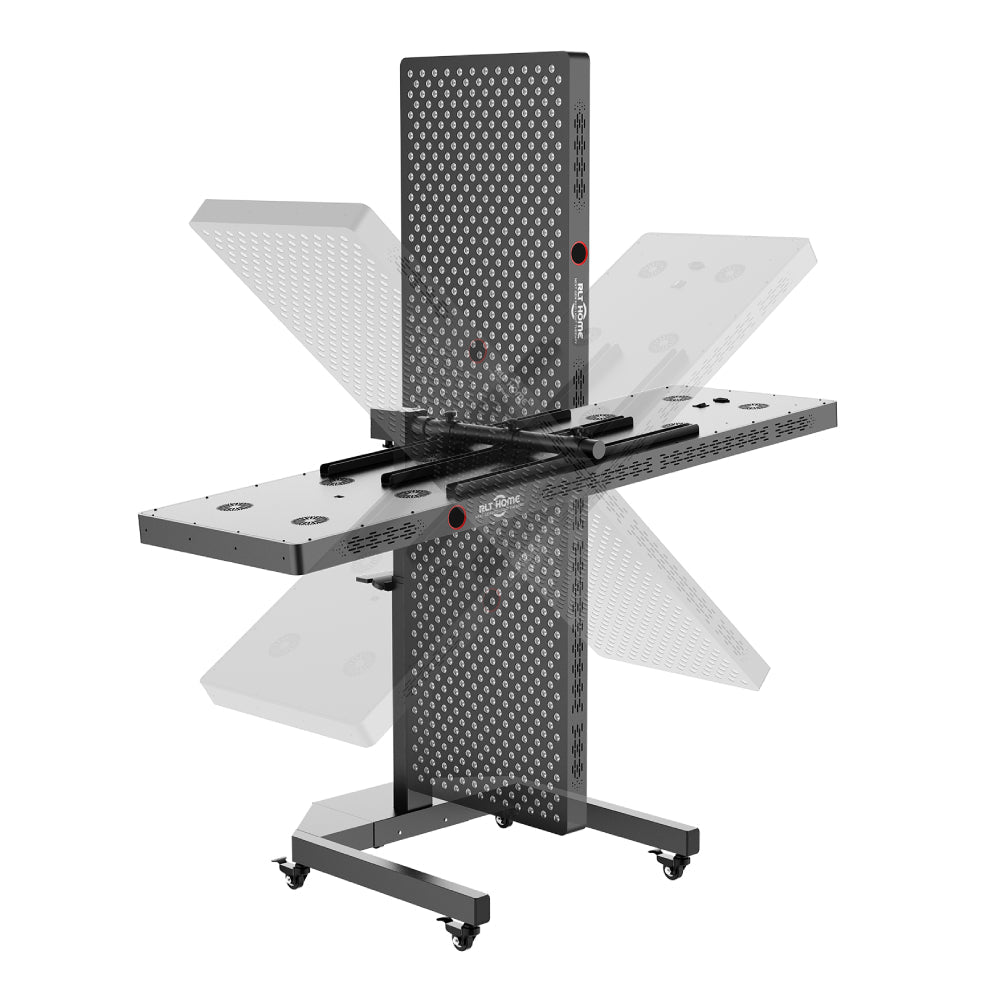

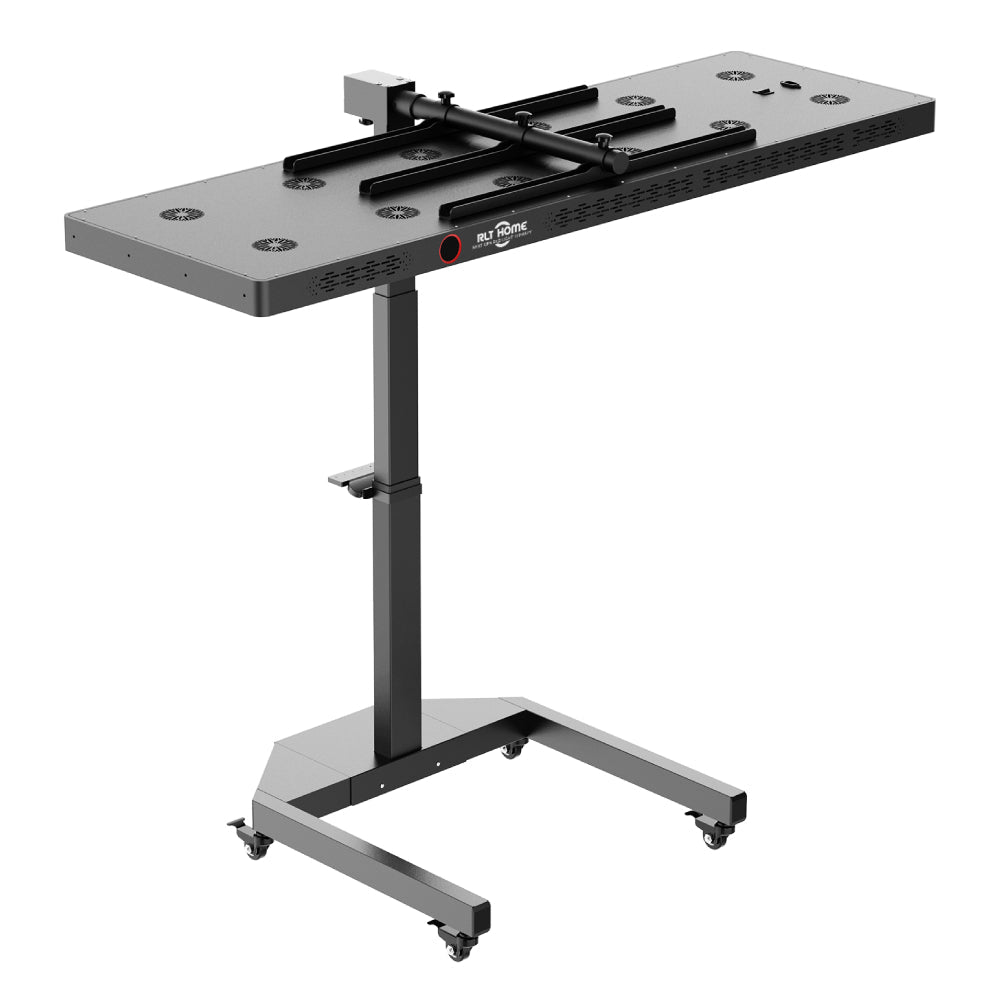

The included electric stand supports vertical, angled, and horizontal positioning, with an adjustable installed height from 29 to 64 inches. Sessions can be managed through the touch interface or included remote control. The system also offers adjustable pulsing, nine preset modes, and a custom mode with independent intensity and pulsing controls for four wavelength channels.
The ELITE features an iron housing, a 30-degree beam angle, no-flicker operation, and a measured EMF reading of approximately 0.0 μT at distances of 6 inches or greater. The panel and adjustable electric stand ship separately.
Features
- 864 LEDs for full-body light coverage
- Seven wavelengths with specified density distribution
- Nine preset operating modes
- Custom mode with four independently adjustable wavelength channels
- Adjustable pulsing from 0 to 5,000 Hz
- Touch interface and remote control
- Adjustable electric stand for vertical, angled, or horizontal positioning
- 30-degree beam angle
- No-flicker operation
- Approximately 0.0 μT EMF at 6 inches or greater
- 100,000-hour rated LED lifespan
- AC 100–240V electrical compatibility
- CE certified and RoHS compliant
- Iron housing
- Protective eyewear included
Specifications
- Brand: RLT Home
- Model: Total Spectrum ELITE
- LED count: 864
- LED wattage: 5W
- Power consumption: 1540W
- Voltage: AC 100–240V
- Pulsing range: 0–5,000 Hz
- Preset modes: 9
- Custom channels: Red, blue, near-infrared, and 1064nm
- Beam angle: 30 degrees
- LED lifespan: 100,000 hours
- EMF measurement: Approximately 0.0 μT at 6 inches or greater
- Housing material: Iron
- Certifications: CE and RoHS
- Irradiance measured with solar power meter: 179 mW/cm² at 8 inches
- Irradiance measured with spectrometer: 121.62 mW/cm² at 6 inches
- 480nm blue light: 6% density
- 630nm red light: 19% density
- 660nm red light: 19% density
- 810nm near-infrared light: 19% density
- 830nm near-infrared light: 14% density
- 850nm near-infrared light: 9% density
- 1064nm infrared light: 14% density

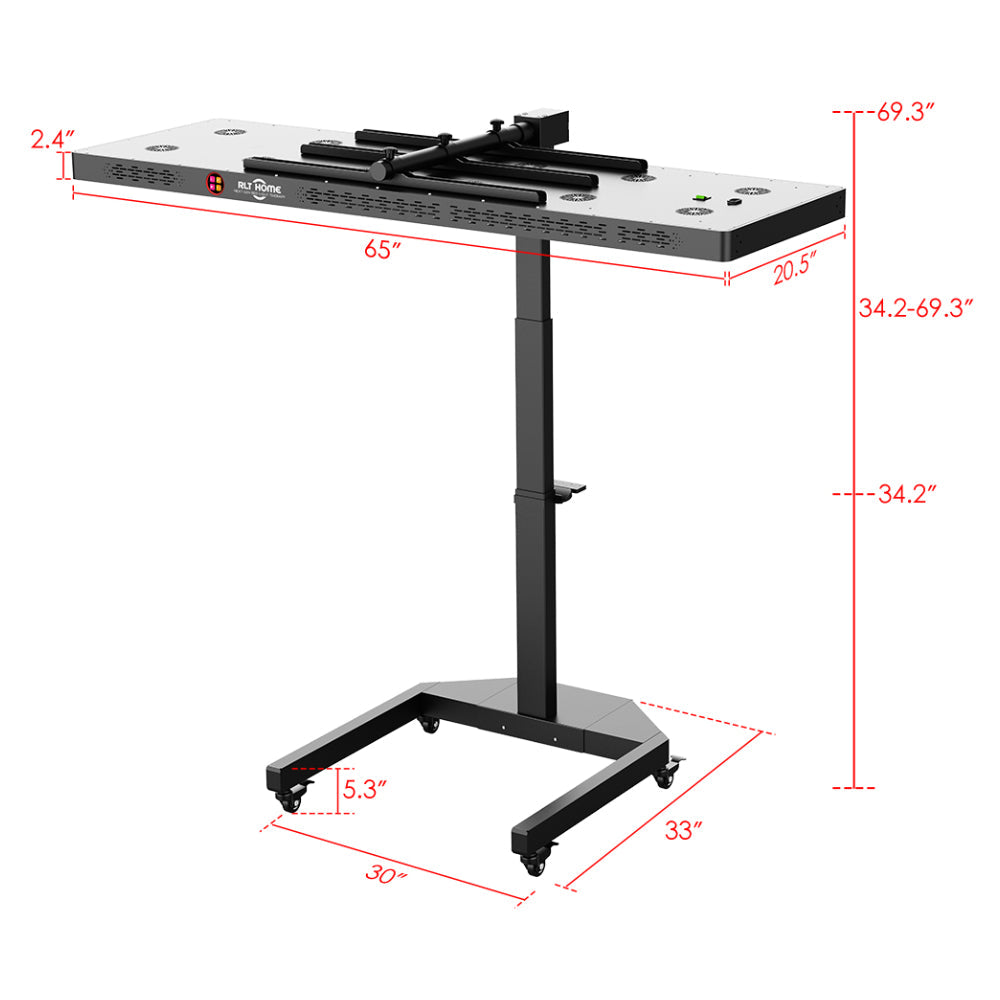

- Device dimensions: 1650 × 520 × 60 mm / 65 × 20.5 × 2.4 inches
- Device weight: 39 kg / 86 lbs
- Device shipping box: 1730 × 620 × 190 mm / 68 × 24 × 7 inches
- Device shipped weight: 42 kg / 92.6 lbs
- Stand dimensions: 838 × 711 × 127 mm / 33 × 28 × 5 inches
- Stand weight: 24 kg / 53 lbs
- Stand shipping box: 840 × 740 × 150 mm / 33 × 29 × 6 inches
- Stand shipped weight: 27 kg / 59.5 lbs
- Installed stand footprint: Approximately 3 × 3 feet
- Installed stand clearance: 5.5 inches with wheels / 3 inches without wheels
- Installed stand height range: 29 to 64 inches

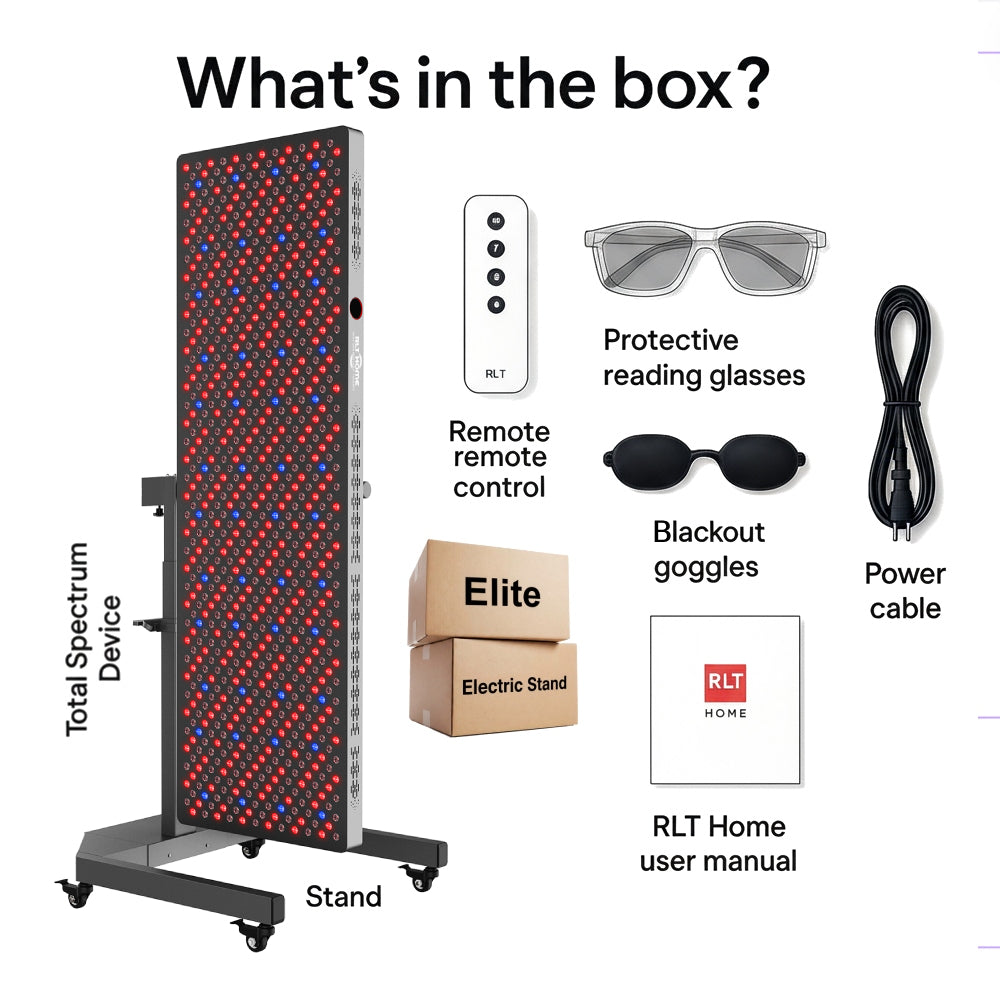

- Included components: Total Spectrum ELITE device, adjustable electric stand, remote control, protective reading glasses, blackout goggles, RLT Home user manual, and power cable
Assembly
The Total Spectrum ELITE device and adjustable electric stand ship separately. Stand assembly and installation are required. Follow the included RLT Home user manual for assembly, positioning, electrical connection, and operating instructions.
Warranty
Includes a three-year manufacturer warranty. Warranty coverage is subject to the manufacturer’s terms and conditions.
