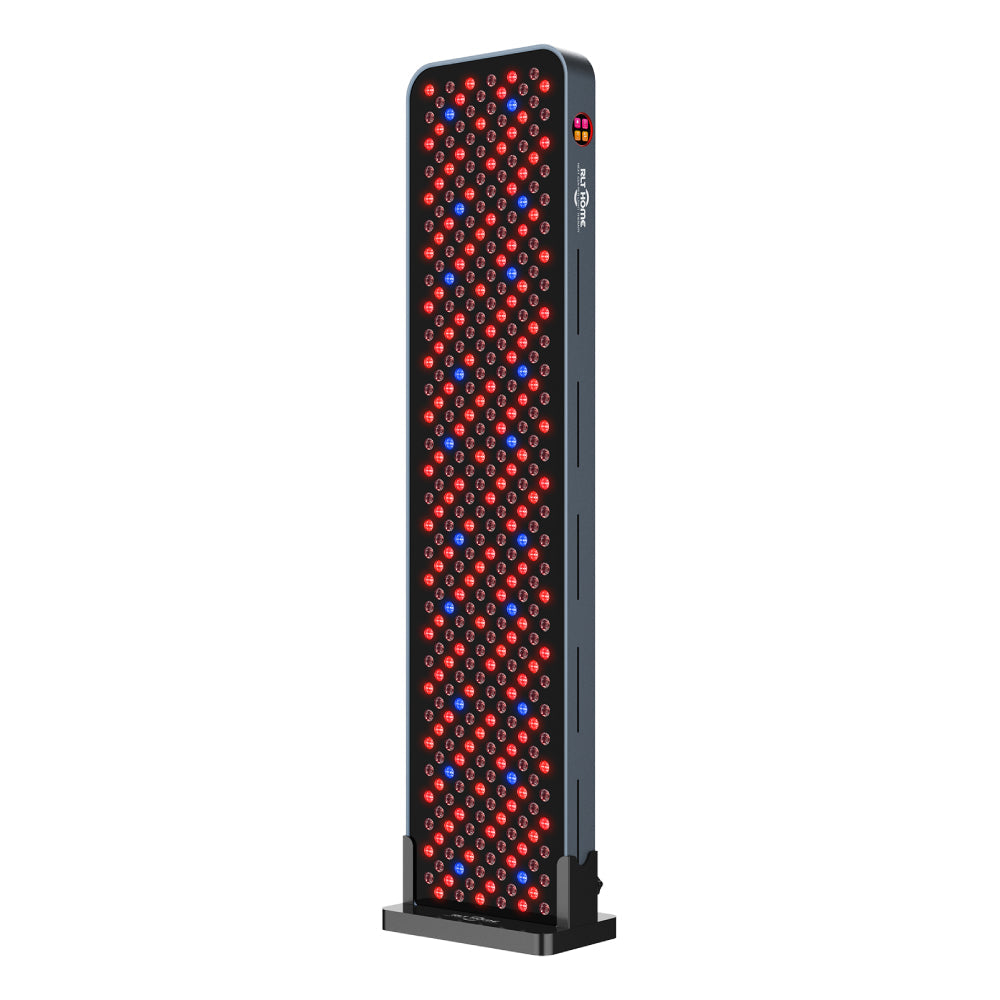

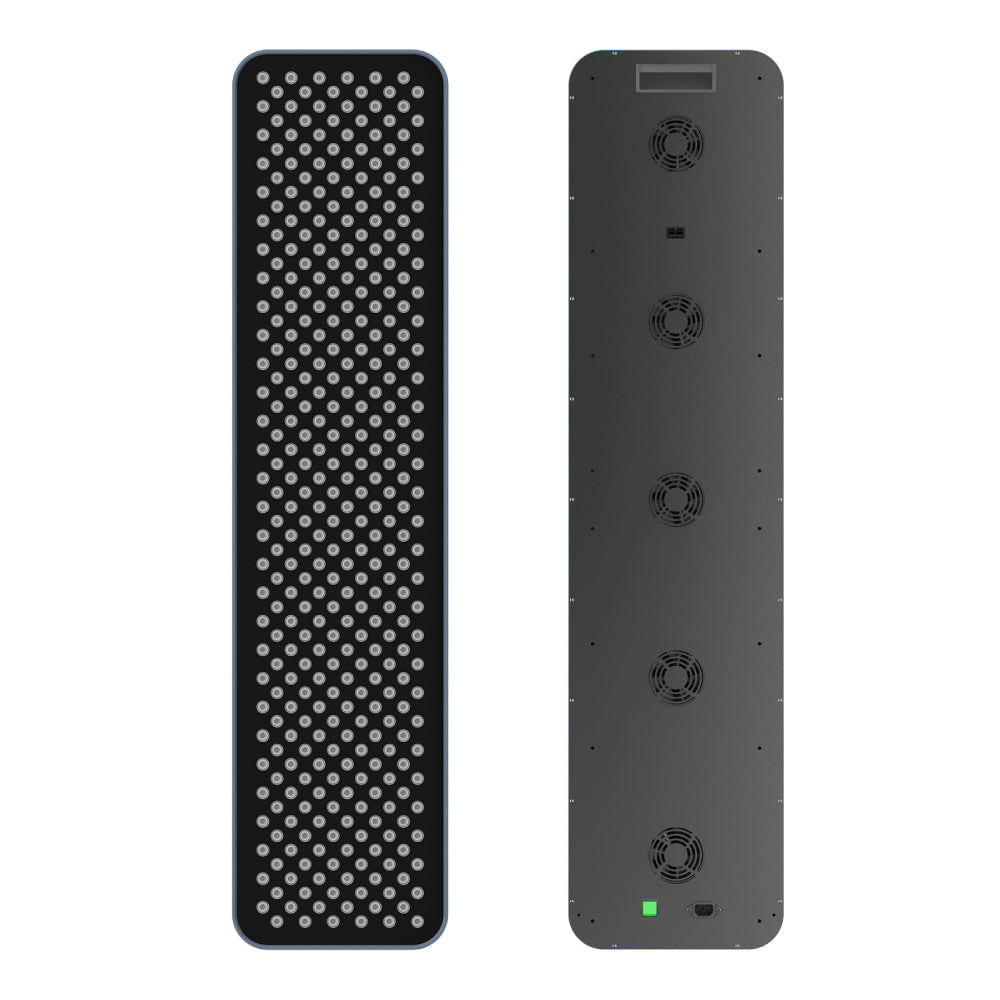

The RLT Home Total Spectrum MAX is a large LED light panel featuring 360 LEDs across seven wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, and 1064nm.
The panel provides an irradiance of 172 mW/cm² at 8 inches when measured with a solar power meter and 100.53 mW/cm² at 6 inches when measured with a spectrometer. Its controls include nine preset modes and a custom mode with independent intensity and pulsing adjustments for four wavelength channels.

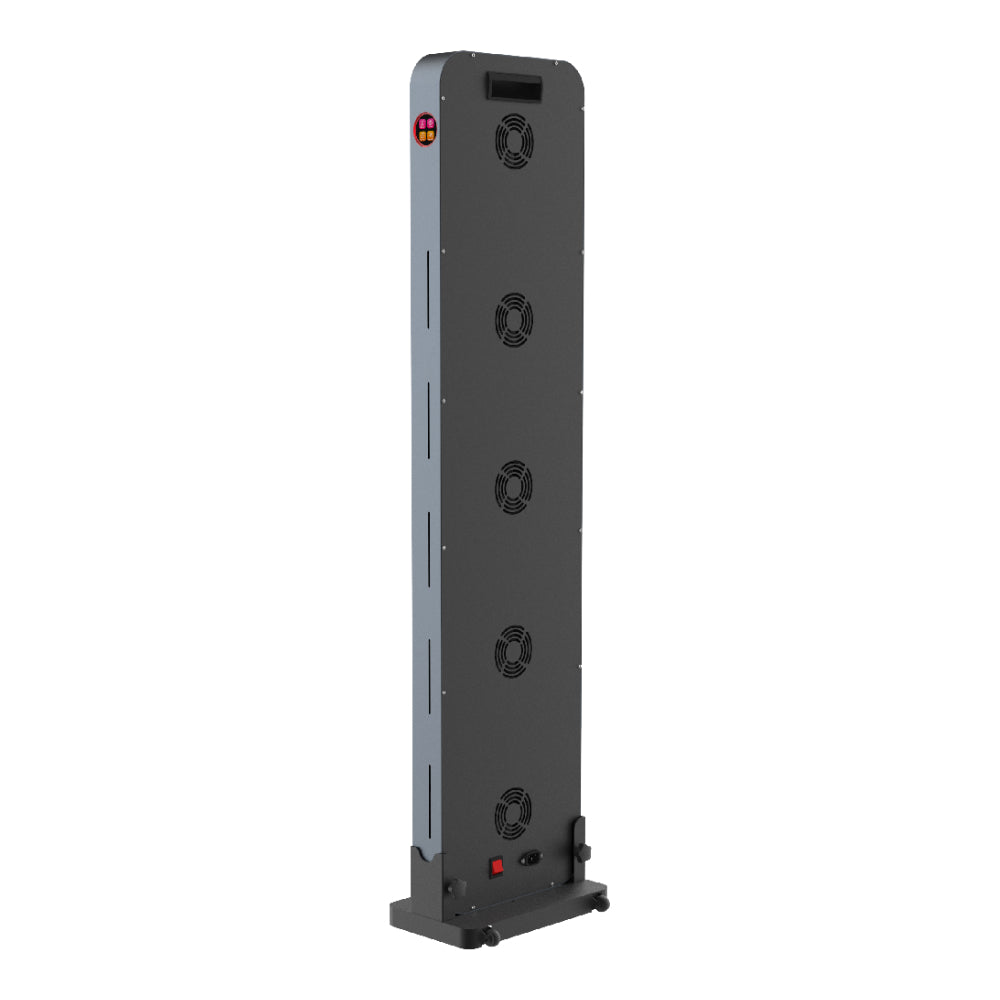

The Total Spectrum MAX features an aluminum housing, a 30-degree beam angle, adjustable pulsing, touch and remote controls, and a rated LED lifespan of 100,000 hours. A vertical stand with wheels and a door-hanging kit are included for flexible placement.
Features
- 360 LEDs
- Seven light wavelengths
- Nine preset operating modes
- Custom operating mode
- Four independently adjustable wavelength channels
- Adjustable pulsing from 0 to 5,000 Hz
- Touch interface and remote control
- 30-degree beam angle
- No-flicker operation
- Approximately 0.0 μT EMF at 6 inches or greater
- 100,000-hour rated LED lifespan
- Aluminum housing

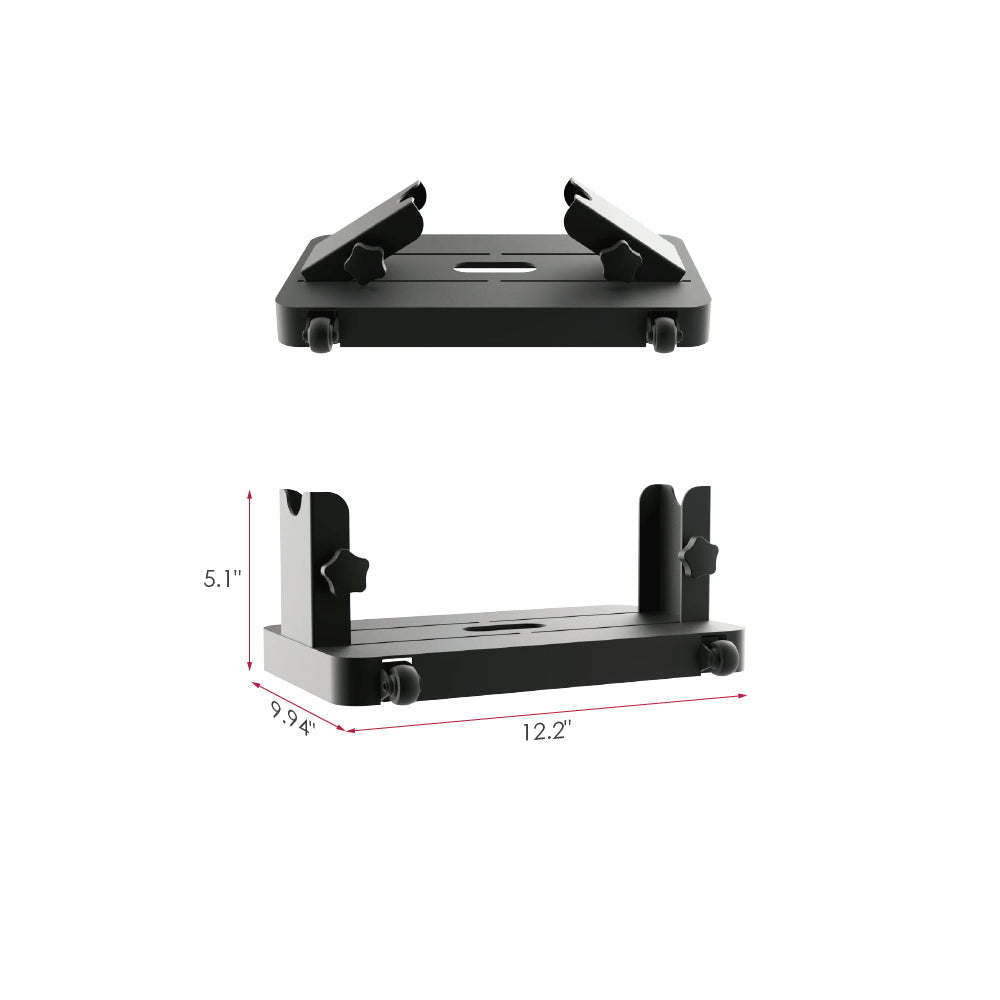

- Vertical stand with wheels
- Door-hanging kit
- Protective eyewear included
Specifications
- Brand: RLT Home
- Model: Total Spectrum MAX
- LED count: 360
- LED wattage: 5W
- Power consumption: 550W
- Voltage: AC 100–240V
- Pulsing range: 0–5,000 Hz
- Preset modes: 9
- Custom channels: Red, blue, near-infrared, and 1064nm
- Beam angle: 30 degrees
- LED lifespan: 100,000 hours
- EMF measurement: Approximately 0.0 μT at 6 inches or greater
- Flicker: None
- Housing material: Aluminum
- Certifications and registration: FDA registered, CE certified, and RoHS certified
- Irradiance measured with solar power meter: 172 mW/cm² at 8 inches
- Irradiance measured with spectrometer: 100.53 mW/cm² at 6 inches

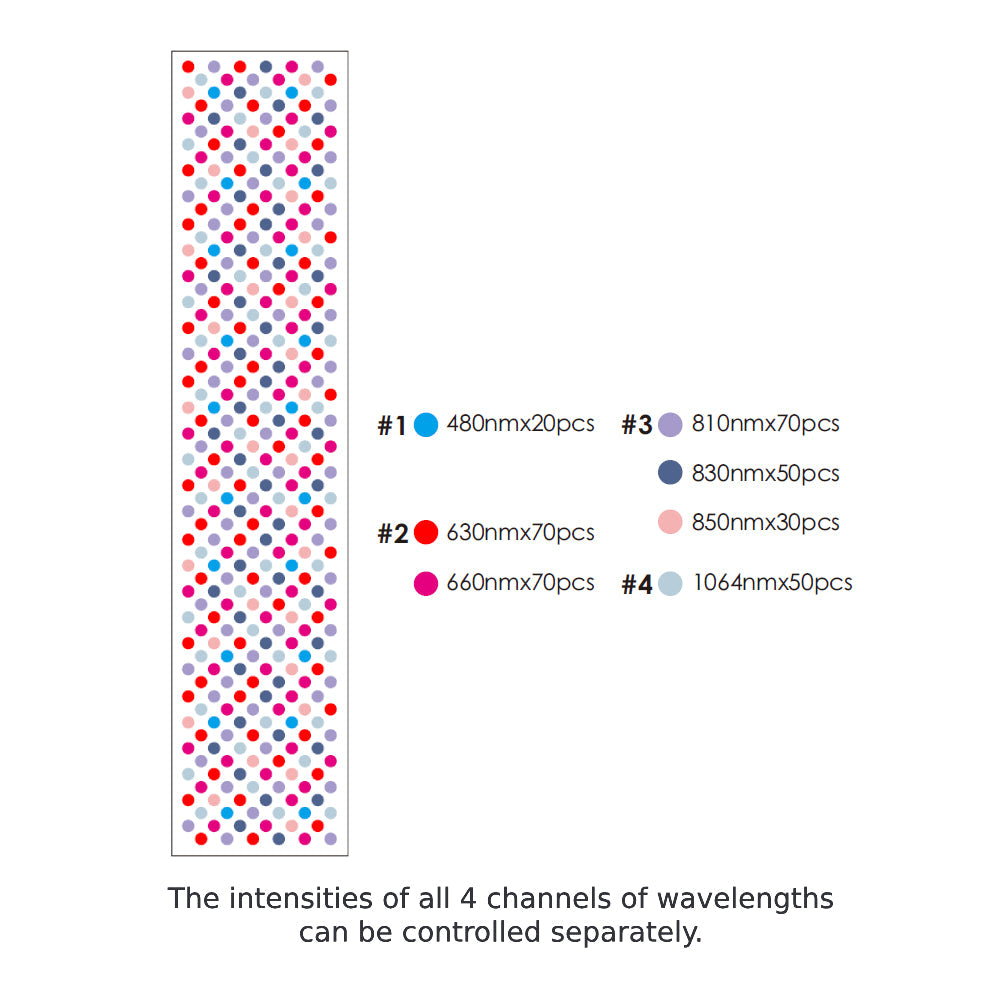

- 480nm blue light: 6% density
- 630nm red light: 19% density
- 660nm red light: 19% density
- 810nm near-infrared light: 19% density
- 830nm near-infrared light: 14% density
- 850nm near-infrared light: 9% density
- 1064nm infrared light: 14% density
- Device dimensions: 1250 × 300 × 65 mm / 49.2 × 11.8 × 2.6 inches
- Device weight: 14 kg / 30.8 lbs
- Shipping box dimensions: 1325 × 380 × 180 mm / 52 × 15 × 7 inches
- Shipped weight: 17.5 kg / 38.6 lbs

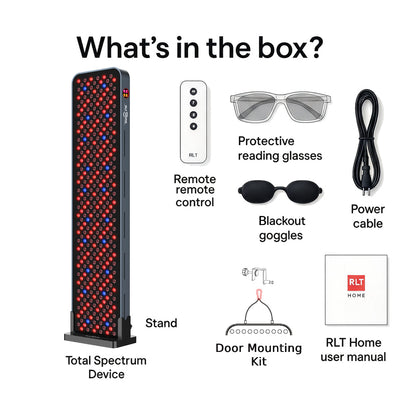

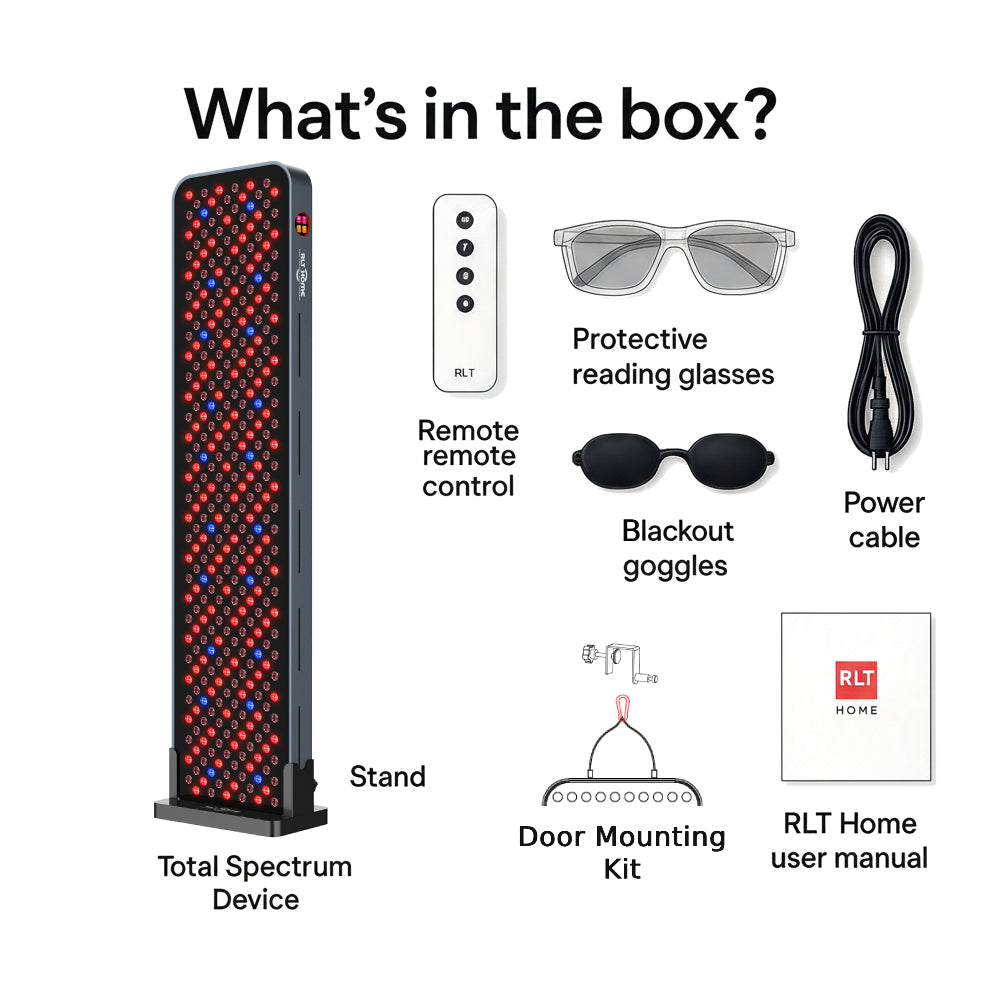

- Included components: Total Spectrum MAX panel, vertical stand, remote control, protective reading glasses, blackout goggles, door-hanging kit, RLT Home user manual, and power cable
Assembly

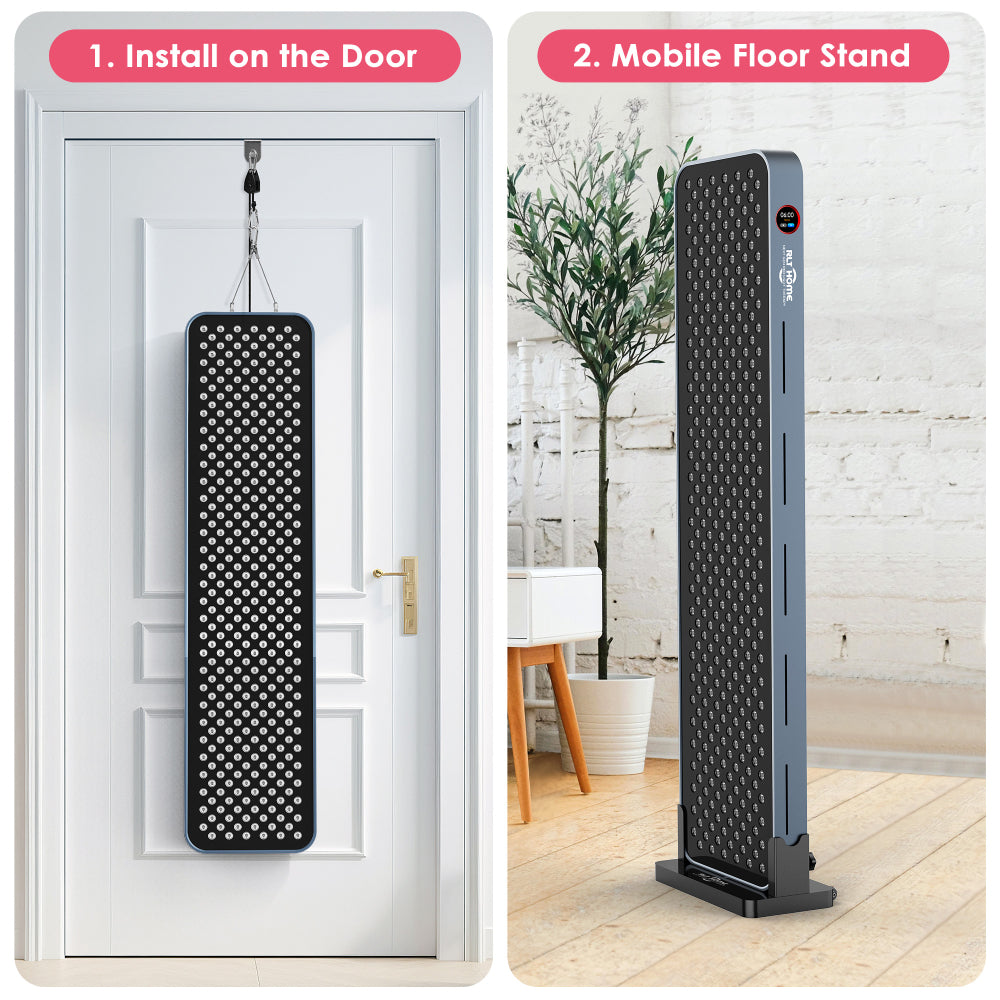

Place the panel using the included vertical stand or door-hanging kit. Follow the included RLT Home user manual for setup, positioning, electrical connection, and operating instructions.
Warranty
Includes a three-year manufacturer warranty. Warranty coverage is subject to the manufacturer’s terms and conditions.
