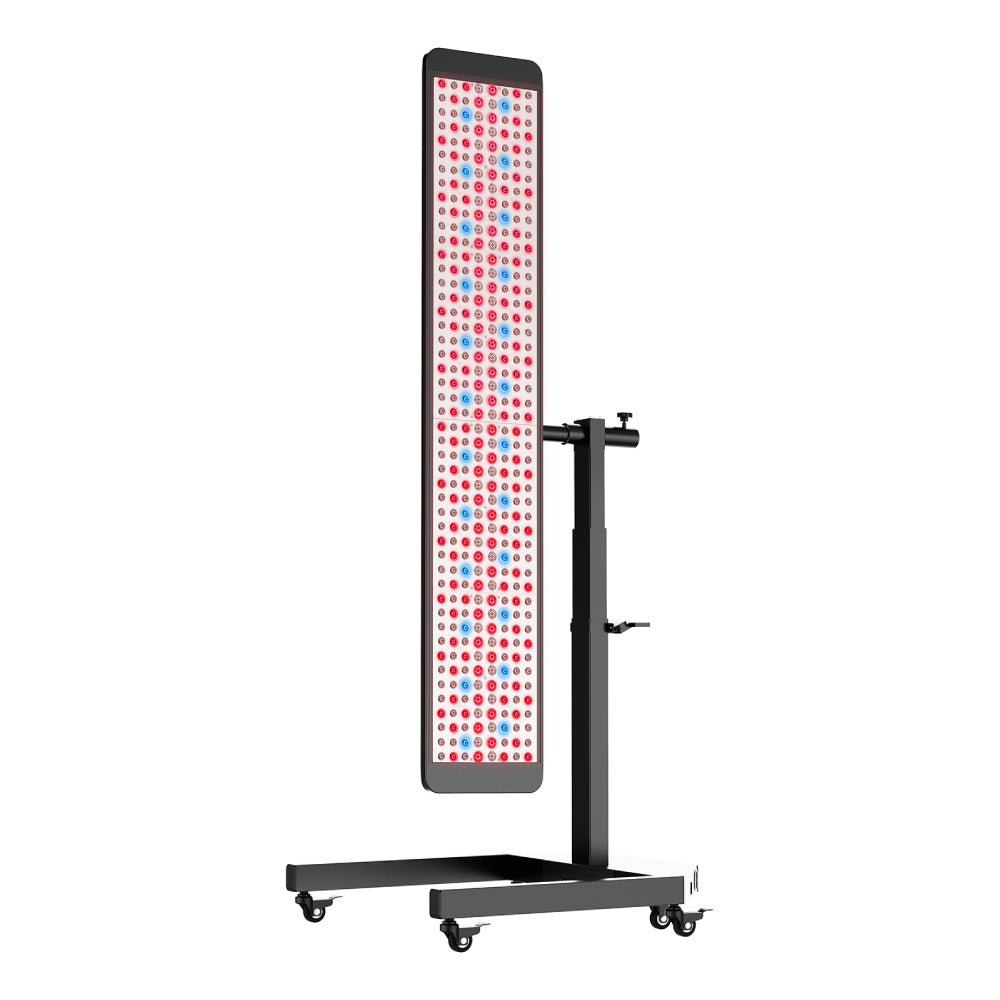

The RLT Home Total Spectrum ULTRA is a full-body LED light panel featuring 480 LEDs across seven wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, and 1064nm.

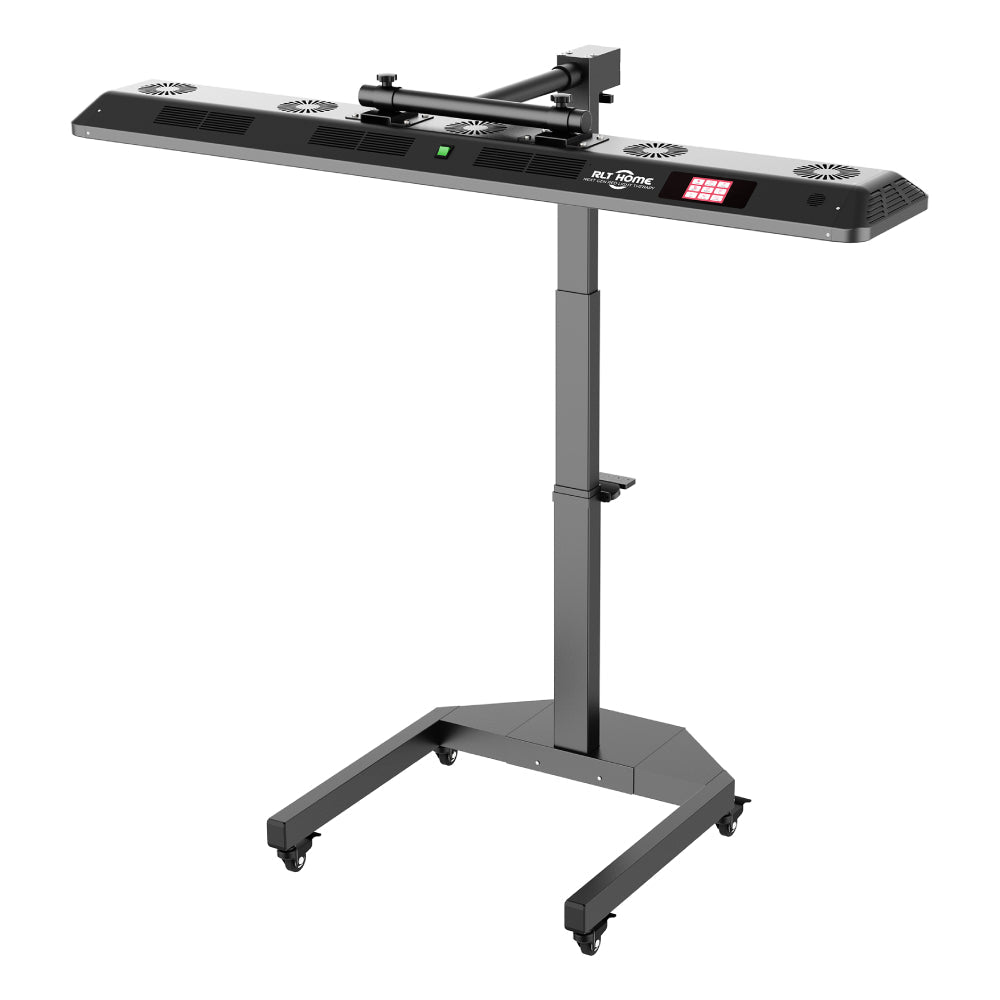

The included adjustable electric stand supports horizontal and vertical positioning, with an installed height range of 29 to 64 inches. The panel is operated through touch and voice controls and includes nine preset modes plus a custom mode. Custom settings allow independent intensity and pulsing adjustments across four wavelength channels.

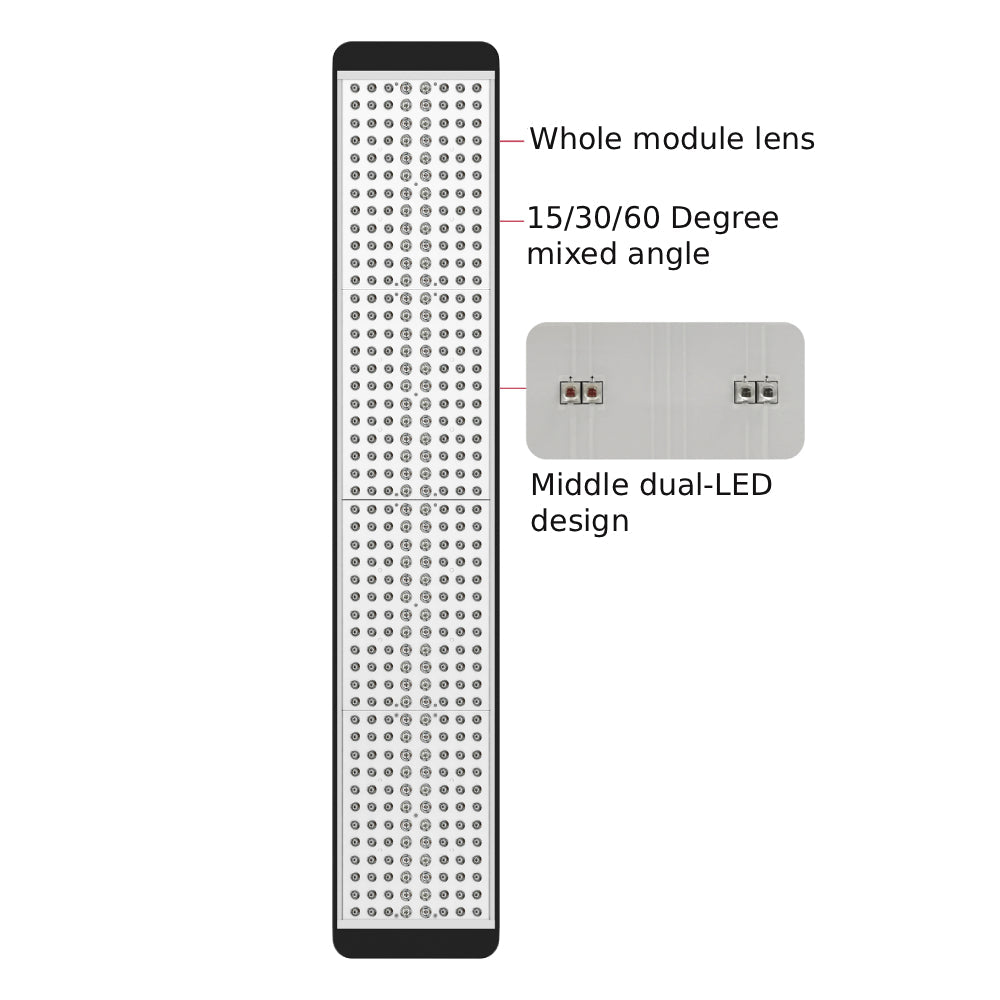

The ULTRA features a mixed 15-, 30-, and 60-degree beam-angle system, iron housing, no-flicker operation, and approximately 0.0 μT EMF at distances of 6 inches or greater. The panel and electric stand ship separately.
Features
- 480 dual-chip LEDs
- Seven light wavelengths
- Four independently adjustable wavelength channels
- Adjustable pulsing from 0 to 5,000 Hz
- Nine preset operating modes
- Custom operating mode
- Touch and voice controls
- Mixed 15-, 30-, and 60-degree beam angles

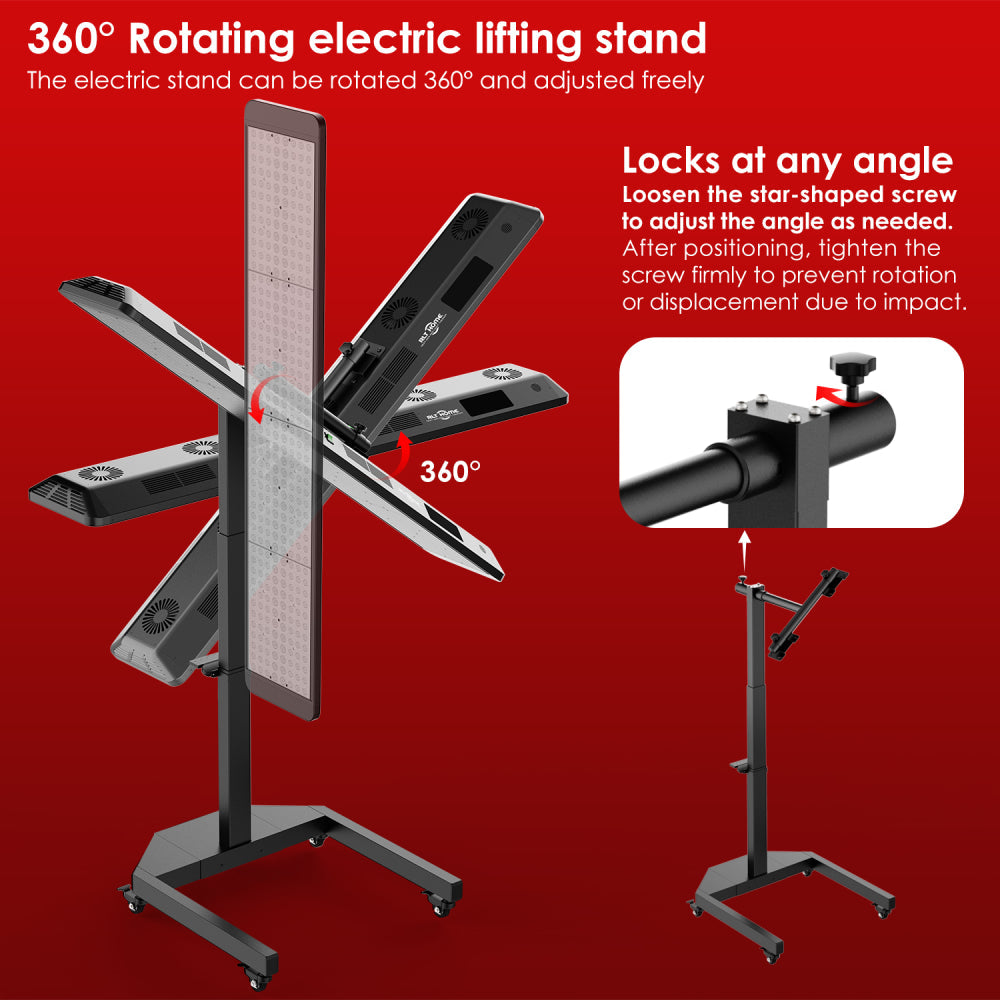

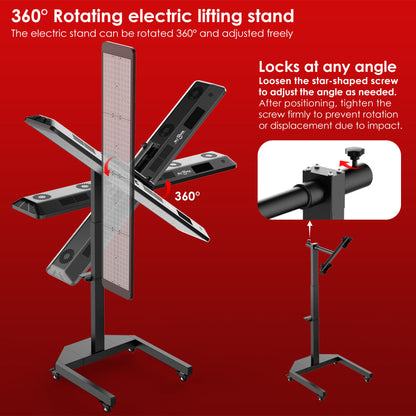

- Adjustable electric stand

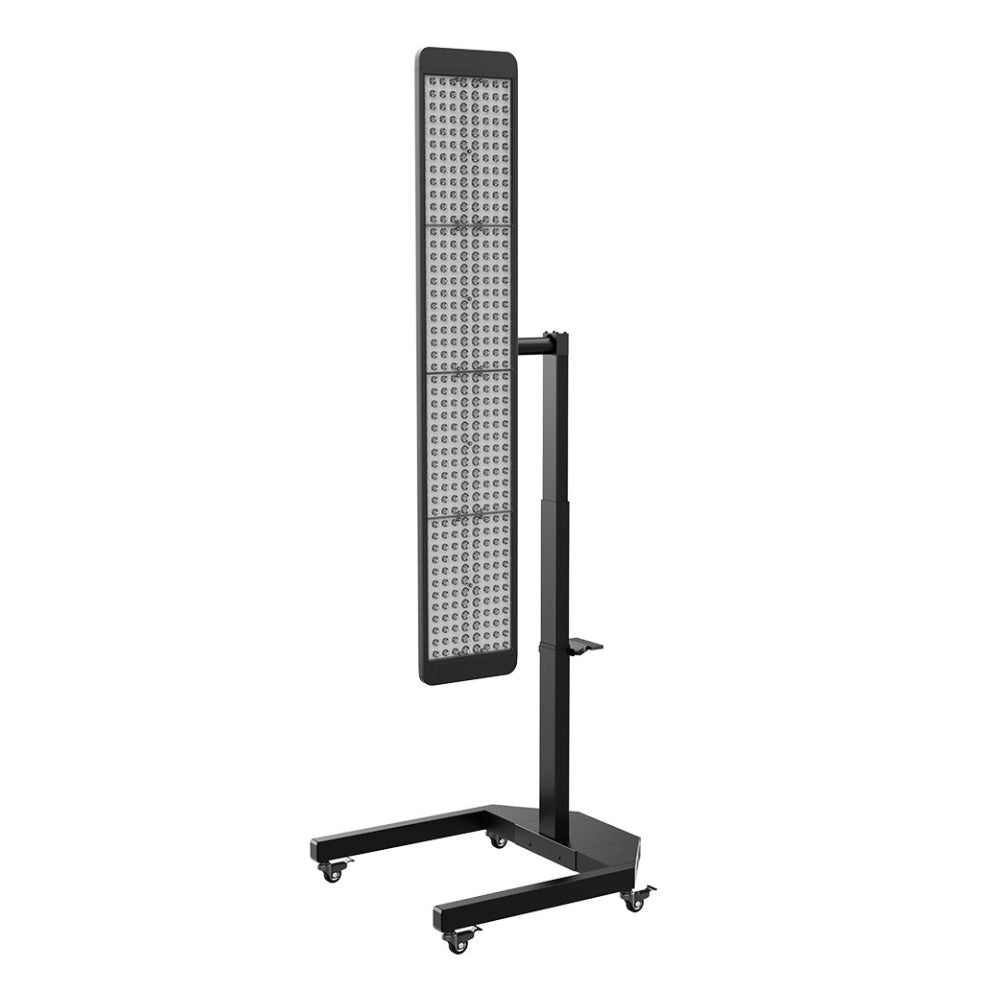

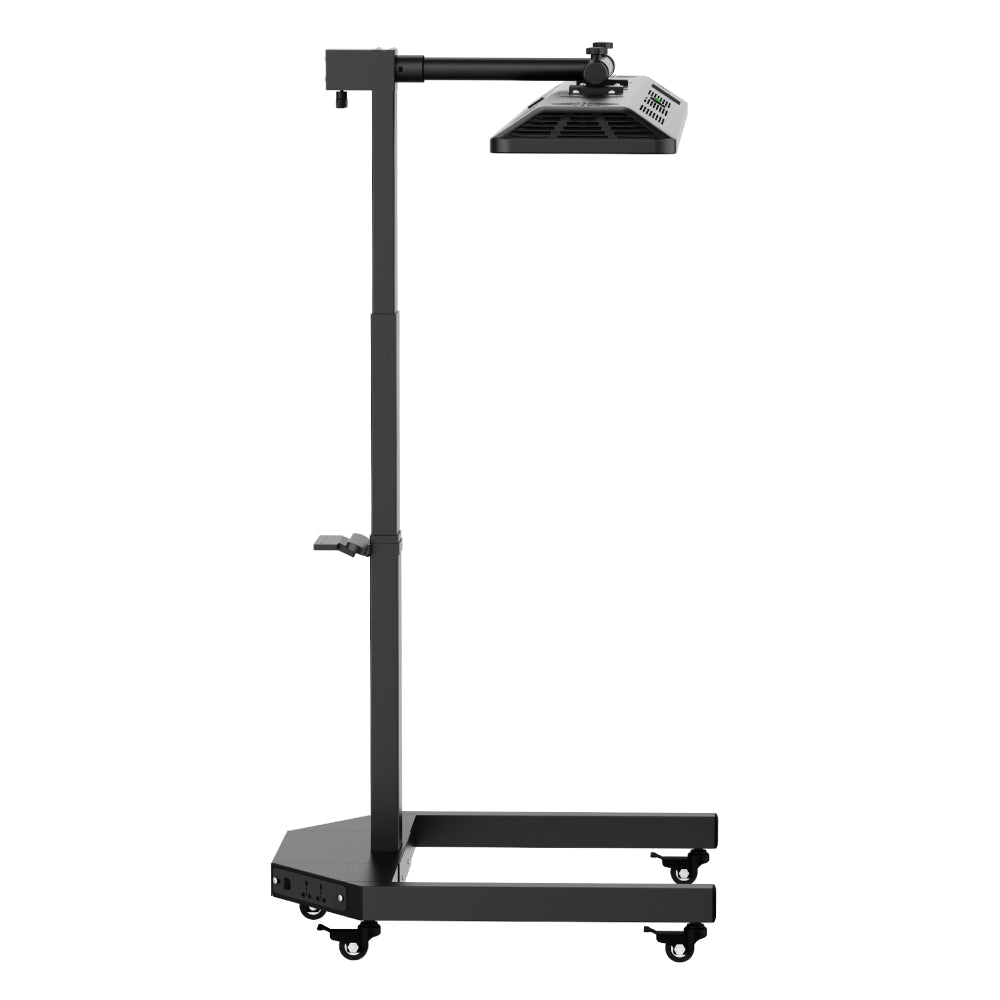

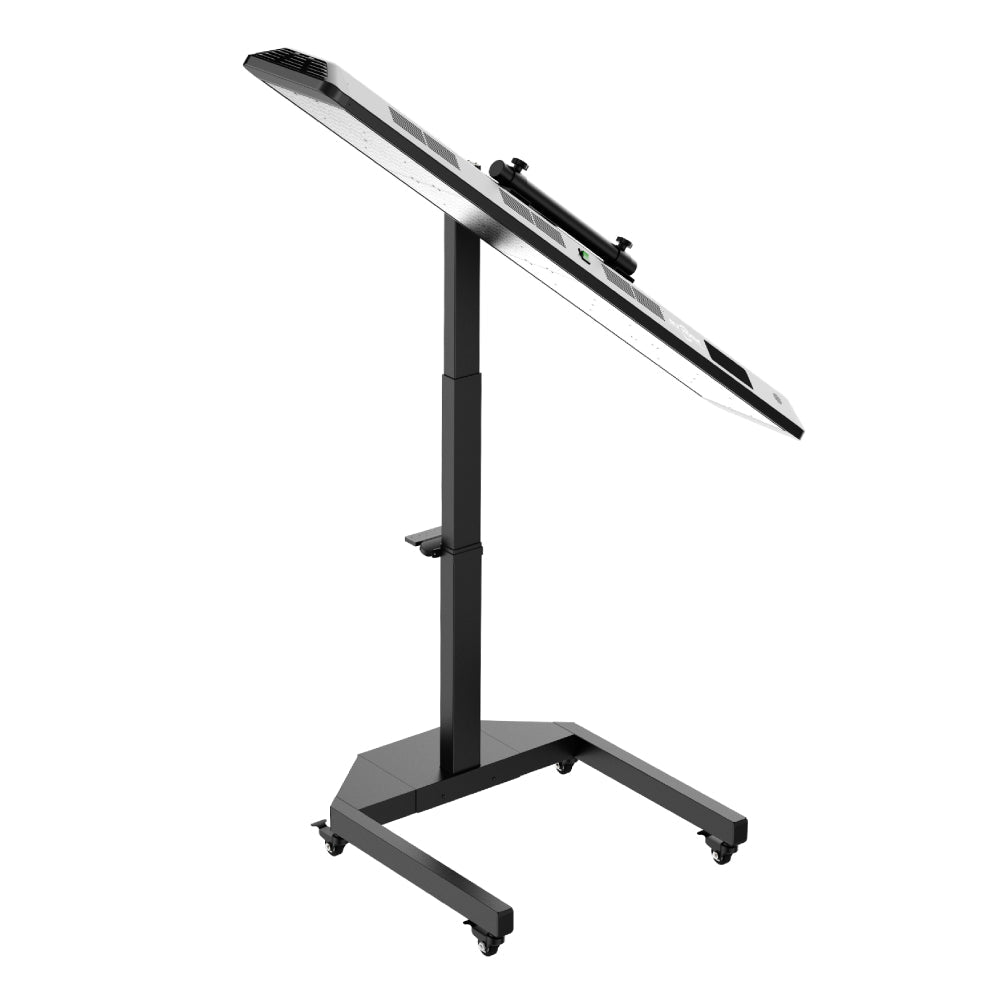

- Horizontal and vertical positioning
- No-flicker operation
- Approximately 0.0 μT EMF at 6 inches or greater
- 100,000-hour rated LED lifespan
- Country-specific power plug
- Protective eyewear included
Specifications
- Brand: RLT Home
- Model: Total Spectrum ULTRA
- LED count: 480
- LED type: 3535 dual LED
- LED wattage: 5W
- Power consumption: 850W
- Voltage: AC 100–240V
- Pulsing range: 0–5,000 Hz
- Preset modes: 9
- Custom channels: Red, blue, near-infrared, and 1064nm
- Beam angles: Mixed 15, 30, and 60 degrees
- LED lifespan: 100,000 hours
- EMF measurement: Approximately 0.0 μT at 6 inches or greater
- Flicker: None
- Housing material: Iron
- Certifications and registrations: FDA registered, CE certified, and RoHS certified
- Irradiance measured with solar power meter: 174 mW/cm² at 8 inches
- Irradiance measured with spectrometer: 119.28 mW/cm² at 6 inches
- 480nm blue light: 5% density
- 630nm red light: 20% density
- 660nm red light: 20% density
- 810nm near-infrared light: 20% density
- 830nm near-infrared light: 13% density
- 850nm near-infrared light: 8% density
- 1064nm infrared light: 14% density
- Device dimensions: 1635 × 300 × 75 mm / 64.3 × 11.8 × 3 inches
- Device weight: 18 kg / 39.6 lbs
- Device shipping box: 1810 × 390 × 170 mm / 71 × 15 × 6 inches
- Device shipped weight: 23.4 kg / 51.5 lbs
- Stand dimensions: 838 × 711 × 127 mm / 33 × 28 × 5 inches
- Stand weight: 24 kg / 53 lbs
- Stand shipping box: 840 × 740 × 150 mm / 33 × 29 × 6 inches
- Stand shipped weight: 27.8 kg / 61.3 lbs
- Installed stand footprint: Approximately 3 × 3 feet
- Installed stand clearance: 5.5 inches with wheels / 3 inches without wheels
- Installed stand height range: 29 to 64 inches
- Included components: Total Spectrum ULTRA panel, adjustable electric stand, protective reading glasses, blackout goggles, RLT Home user manual, and power cable
Assembly
The Total Spectrum ULTRA panel and adjustable electric stand ship separately. Stand assembly and installation are required. Follow the included RLT Home user manual for assembly, positioning, electrical connection, and operating instructions.
Warranty
Includes a three-year manufacturer warranty. Warranty coverage is subject to the manufacturer’s terms and conditions.
